QUESTION 1 (5 marks) The transistor in the circuit has a ß of 100 and exhibits a VBE of 0.7V at ic = 2mA. Design the cir

Post by answerhappygod »

Question 1 5 Marks The Transistor In The Circuit Has A Ss Of 100 And Exhibits A Vbe Of 0 7v At Ic 2ma Design The Cir 1
Question 1 5 Marks The Transistor In The Circuit Has A Ss Of 100 And Exhibits A Vbe Of 0 7v At Ic 2ma Design The Cir 1 (30.28 KiB) Viewed 34 times
Please Show All Working
Draw a clear Picture of the Circuit.

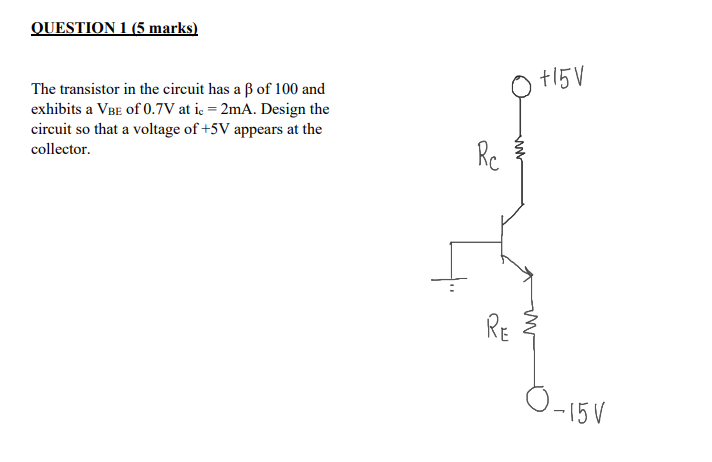

QUESTION 1 (5 marks) The transistor in the circuit has a ß of 100 and exhibits a VBE of 0.7V at ic = 2mA. Design the circuit so that a voltage of +5V appears at the collector. Re RE www +15V -15 V
