6. For the LIS3MDL sensor chip, find out the appropriate values to be written into the control registers with the follow

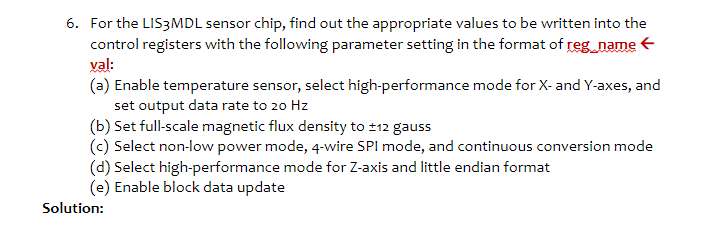

6. For the LIS3MDL sensor chip, find out the appropriate values to be written into the control registers with the following parameter setting in the format of reg_name ← val: (a) Enable temperature sensor, select high-performance mode for X- and Y-axes, and set output data rate to 20 Hz (b) Set full-scale magnetic flux density to ±12 gauss (c) Select non-low power mode, 4-wire SPI mode, and continuous conversion mode (d) Select high-performance mode for Z-axis and little endian format (e) Enable block data update Solution:
