Hey guys. I want to make this circuit having more than 30dB voltage gain by controlling Length and width of the mosfets

Post by answerhappygod »

Hey guys.
I want to make this circuit having more than 30dB voltage gain
by controlling Length and width of the mosfets and biasing
Vgs.
But literally I have no idea how to start with this.
Can you guys pls give me some useful tips?
I use Hspice program.
+the mosfet is TSMC 180nm level 49.
+Vdd is 2.5v
+0.18um < L < 5um
+ 0.18um < w < 100um

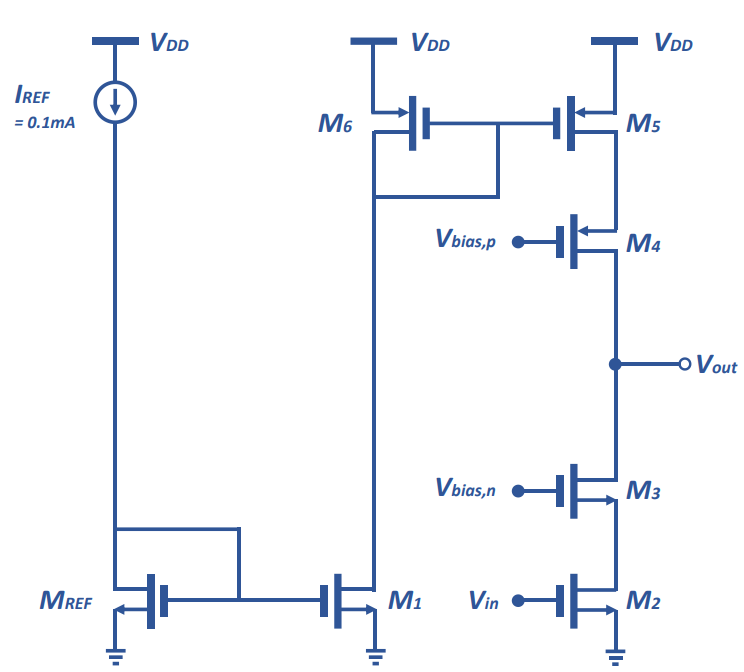

Hey Guys I Want To Make This Circuit Having More Than 30db Voltage Gain By Controlling Length And Width Of The Mosfets 1
Hey Guys I Want To Make This Circuit Having More Than 30db Voltage Gain By Controlling Length And Width Of The Mosfets 1 (31.76 KiB) Viewed 25 times
IREF = 0.1mA MREF VDD M。 VDD Vbias,p Vbias,n M₁ Vin 片 美 生 生 VDD M5 M4 M3 Mz -O Vout
