Name Problem 2 33 Pts A B 16 Points Redraw The Circuit To Model The Effects Of Mutual Inductance 12 Points Der 1 (478.32 KiB) Viewed 22 times
i need this solution urgently in one hour. please complete
solution of each part.

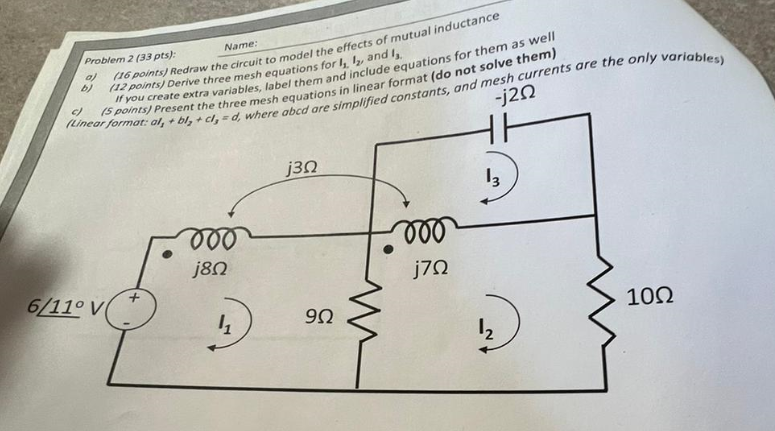

Name: Problem 2 (33 pts): a) b) (16 points) Redraw the circuit to model the effects of mutual inductance (12 points) Derive three mesh equations for I, I, and I, c) If you create extra variables, label them and include equations for them as well (Linear format: al, bl,+cl, d, where abcd are simplified constants, and mesh currents are the only variables) (5 points) Present the three mesh equations in linear format (do not solve them) -j20 j32 ooo moo j8Ω j7Q 6/11° V 10Ω + 11 9Ω 13
