5 A 10 Points Total In The Circuit Below Find Expressions For A 3 Points Current I B 3 Points Current Iz C 1 (331.89 KiB) Viewed 34 times

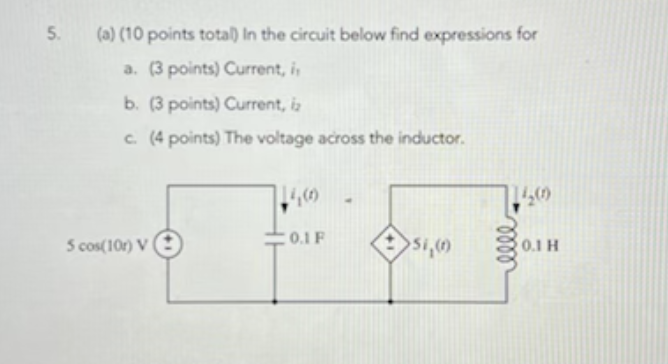

5. (a) (10 points total) In the circuit below find expressions for a. (3 points) Current, i b. (3 points) Current, iz c. (4 points) The voltage across the inductor. 114,60 140 - 51,(1) 20.1 H 5 cos(10) V 0.1 F
5. (b) (10 points) Determine the steady state current i(t) in the circuit shown below, when the voltage source voltages are: Va(t)- 10 cos (4t + 90%) and Va(t)- 20 cos (8t-90%) Vs1 (t) Vs2 (t) +1 1Ω 250 mH
