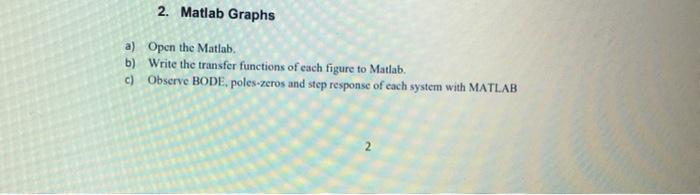

2. Matlab Graphs a) Open the Matlab. b) Write the transfer functions of each figure to Matlab. c) Observe BODE, poles-zeros and step response of each system with MATLAB

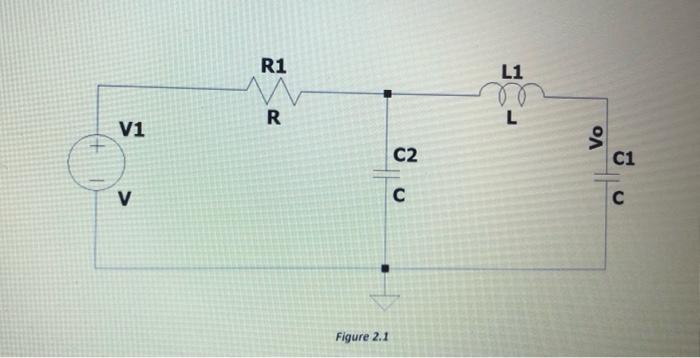

V1 V R1 M R Figure 2.1 C2 C L1 L Vo C1 C
