6. (20 pts) (Show your work) Given the following circuit with coupled inductors j4 Ω I 1₂ 2Ω j10 Ω j2 Ω 240° V Find I in
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
6. (20 pts) (Show your work) Given the following circuit with coupled inductors j4 Ω I 1₂ 2Ω j10 Ω j2 Ω 240° V Find I in

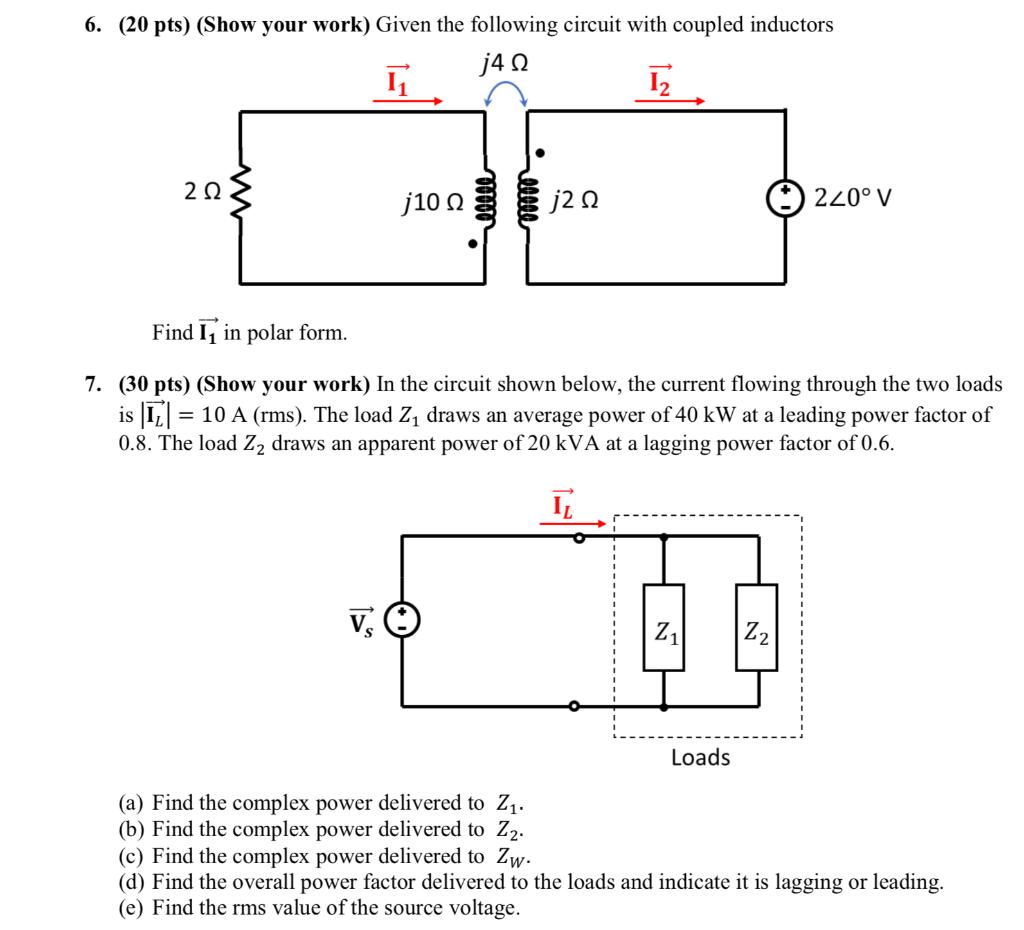

6. (20 pts) (Show your work) Given the following circuit with coupled inductors j4 Ω I 1₂ 2Ω j10 Ω j2 Ω 240° V Find I in polar form. 7. (30 pts) (Show your work) In the circuit shown below, the current flowing through the two loads is = 10 A (rms). The load Z₁ draws an average power of 40 kW at a leading power factor of 0.8. The load Z₂ draws an apparent power of 20 kVA at a lagging power factor of 0.6. IL Vs Z₁ Z₂ Loads (a) Find the complex power delivered to Z₁. (b) Find the complex power delivered to Z₂. (c) Find the complex power delivered to Zw. (d) Find the overall power factor delivered to the loads and indicate it is lagging or leading. (e) Find the rms value of the source voltage.
