CSE360S Tutorial 4 Modeling Question 1 1.1. Consider the RC circuit shown in Figure 1. Find the differential equation of
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
CSE360S Tutorial 4 Modeling Question 1 1.1. Consider the RC circuit shown in Figure 1. Find the differential equation of

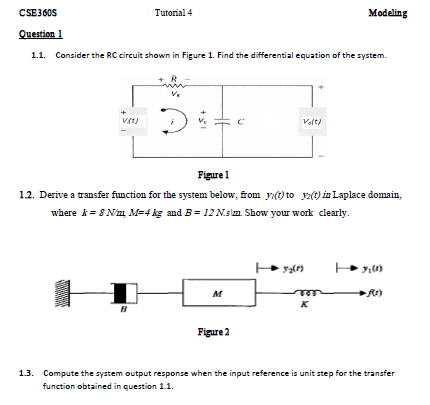

CSE360S Tutorial 4 Modeling Question 1 1.1. Consider the RC circuit shown in Figure 1. Find the differential equation of the system. V₂ + V(X) Volt) Figure 1 1.2. Derive a transfer function for the system below, from y(t) to y(t) in Laplace domain, where k = 8 N/m, M=4 kg and B= 12 N.s\m. Show your work clearly. ·3₂(1) y;(1) H I M mor f(1) K Figure 2 1.3. Compute the system output response when the input reference is unit step for the transfer function obtained in question 1.1.
