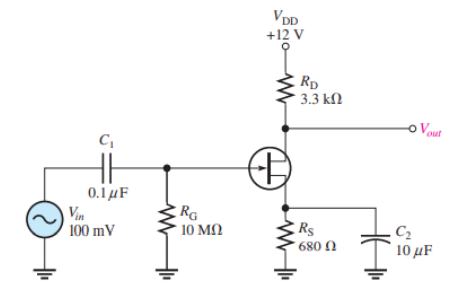

a) What is the input resistance seen by the signal source?
b) Using Multisim simulate the amplifier gain using a
2N4341 JFET with and without the capacitor C2. Based on your
simulation’s observation, explain the purpose of C2.
C₁ 0.1 μF Vin 100 mV RG 10 ΜΩ VDD +12 V RD • 3.3 ΚΩ (B) Rs 680 Ω - Vout . C₂ 10 μF
