(20 pts) (Show your work) For the circuit shown below, the switch has been in position A for a long time and is moved to

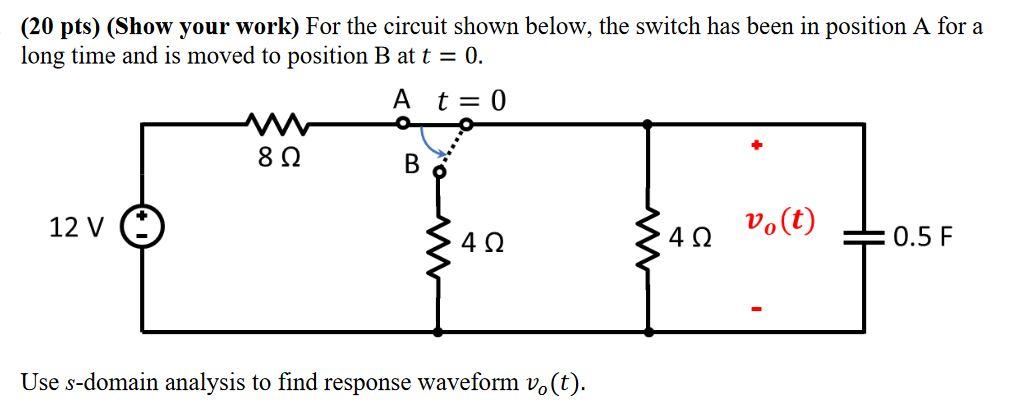

(20 pts) (Show your work) For the circuit shown below, the switch has been in position A for a long time and is moved to position B at t = 0. A t = 0 8 Ω B 12 V vo(t) 4Ω 4Ω 0.5 F - Use s-domain analysis to find response waveform vo(t).
