5. (20 pts) The transfer function of a network is given by T(s) = 2(s +50) (s + 10)² Sketch the Bode magnitude plot. Ske

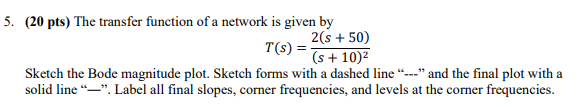

5. (20 pts) The transfer function of a network is given by T(s) = 2(s +50) (s + 10)² Sketch the Bode magnitude plot. Sketch forms with a dashed line "---" and the final plot with a solid line "-". Label all final slopes, corner frequencies, and levels at the corner frequencies.
