Q5 10 Points The Current Voltage Curves Of A Schottky Diode Are Shown In The Figure Below For Various Temperatures D 1 (28.71 KiB) Viewed 39 times
need correct answer with neat handwriting.

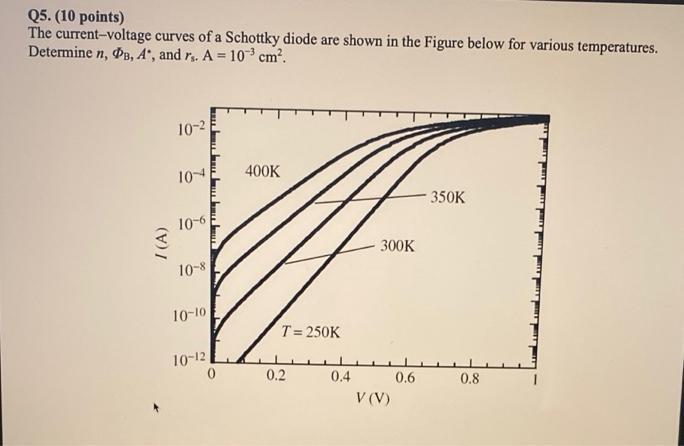

Q5. (10 points) The current-voltage curves of a Schottky diode are shown in the Figure below for various temperatures. Determine n, PB, A, and rs. A = 10³ cm². 10-2 400K 350K I (A) 104 10-6 10-8 10-10 10-12 h 0 T= 250K 0.2 0.4 300K 0.6 V (V) 0.8
