Question A Find The Value Of I In The Circuit Of Figure 4 1 A Given Below Using Nodal Analysis 10 Marks 10 2 1h 1 (54.62 KiB) Viewed 32 times
Please write cleary and were possible include circuit diagrams,
I will upvote

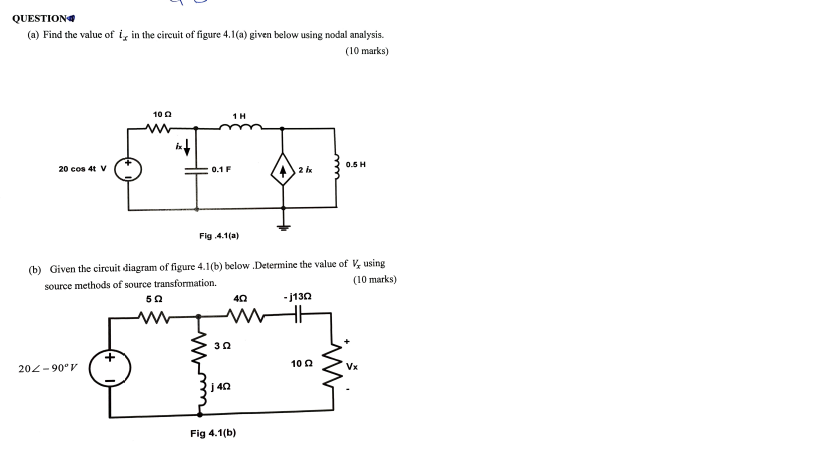

QUESTION (a) Find the value of i, in the circuit of figure 4.1(a) given below using nodal analysis. (10 marks) 10 £2 1H 20 cos 4t V 0.5 H 0.1 F 2 İx Fig.4.1(a) (b) Given the circuit diagram of figure 4.1(b) below .Determine the value of V, using source methods of source transformation. (10 marks) 502 40 -j130 202-90° V ix↓ 302 j 40 Fig 4.1(b) 10 £2 Vx
