Question 7 10 Points Find the second Vout (at the point where the diode in reversed bias) for the network shown in lette

[answerhappygod]

Question 7 10 Points Find The Second Vout At The Point Where The Diode In Reversed Bias For The Network Shown In Lette 1 (115.87 KiB) Viewed 29 times

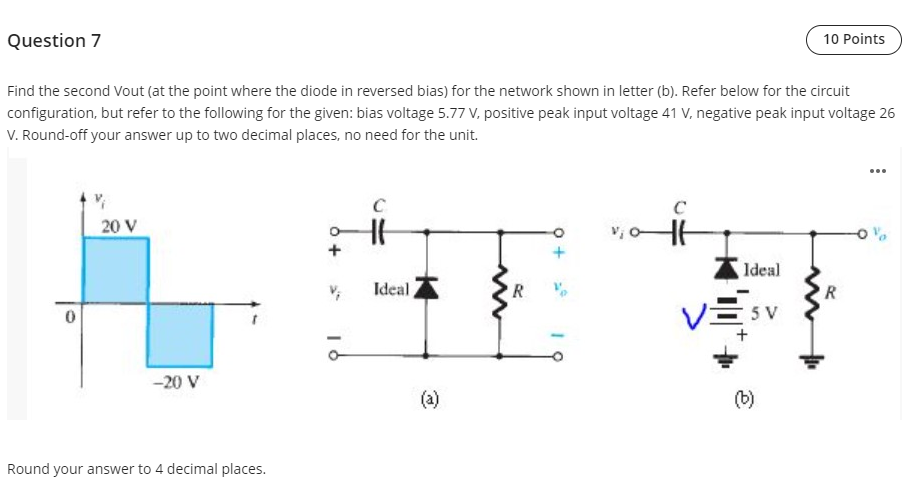

Question 7 10 Points Find the second Vout (at the point where the diode in reversed bias) for the network shown in letter (b). Refer below for the circuit configuration, but refer to the following for the given: bias voltage 5.77 V, positive peak input voltage 41 V, negative peak input voltage 26 V. Round-off your answer up to two decimal places, no need for the unit. C C V 20 V V, 0- Ideal Ideal, R 5 V 0 -20 V Round your answer to 4 decimal places. (a) v= + (b) R 10
