Problem 2. Design a synchronous counter that loops the sequence: 3 5 9 13 → 8 2 0 7 10 13 → using JK flip flops and some

Post by answerhappygod »

Problem 2 Design A Synchronous Counter That Loops The Sequence 3 5 9 13 8 2 0 7 10 13 Using Jk Flip Flops And Some 1
Problem 2 Design A Synchronous Counter That Loops The Sequence 3 5 9 13 8 2 0 7 10 13 Using Jk Flip Flops And Some 1 (12.89 KiB) Viewed 41 times

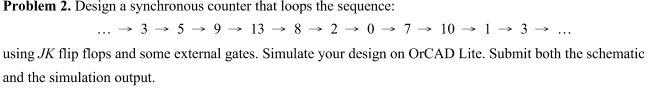

Problem 2. Design a synchronous counter that loops the sequence: 3 5 9 13 → 8 2 0 7 10 13 → using JK flip flops and some external gates. Simulate your design on OrCAD Lite. Submit both the schematic and the simulation output.
