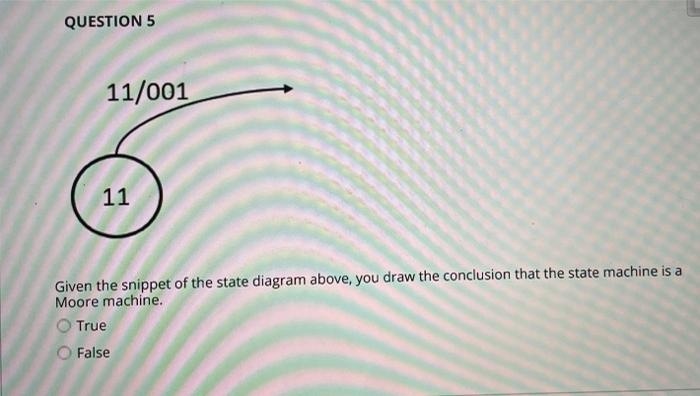

QUESTION 5 11/001 11 Given the snippet of the state diagram above, you draw the conclusion that the state machine is a Moore machine. True O False

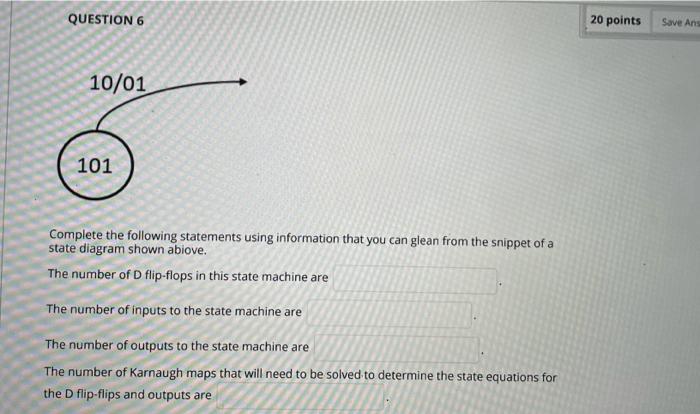

QUESTION 6 10/01 101 Complete the following statements using information that you can glean from the snippet of a state diagram shown abiove. The number of D flip-flops in this state machine are The number of inputs to the state machine are The number of outputs to the state machine are The number of Karnaugh maps that will need to be solved to determine the state equations for the D flip-flips and outputs are 20 points Save Ans
