included, I can send them through Dropbox. When the work is
done, you can send it to me by Dropbox.Thanks. The is
below:

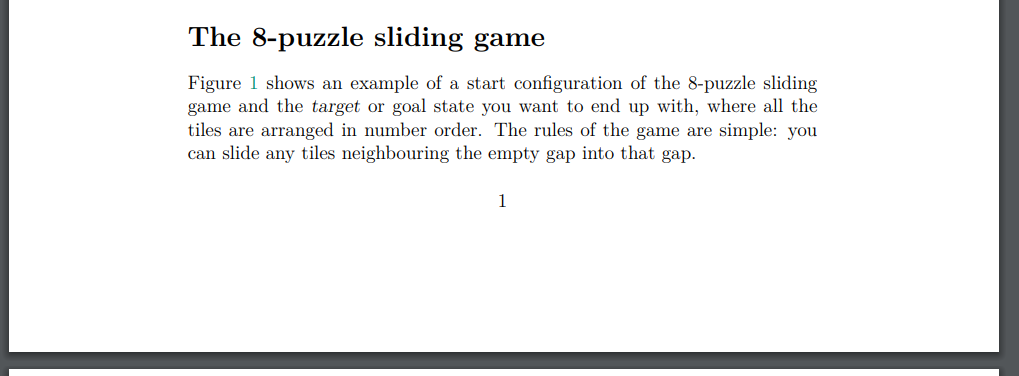

- I Don T Know How To Do The Assignment There Are Some Files Included I Can Send Them Through Dropbox When The Work Is 1 (42.54 KiB) Viewed 30 times
1 3 4 26 758 Configuration Target Figure 1: Rules of the 8-puzzle game: Rearrange the tiles to the desired pattern by sliding adjacent tiles into the space. Note that when the space is at the edge, only three moves are possible. The problem In this assignment you will implement a solution to the 8-puzzle by state- space search, using the search engine described in the lectures. You should experiment with search strategies as described below and write the results up in a short experimental report, using LATEX. LATEX is a document preparation program used for most technical writing - see the lab class in week 8 for a brief tutorial on how to use it including the online editor Overleaf. Provided code The provided searchEngine folder contains two subfolders (BFS and Astar) that each contain the Java classes you have become familiar with in the lab classes they are the same as the ones used for e.g., the jugs search and the map traversal lab class. They implement a simple search engine with depth-first, breadth-first, branch-and-bound and A* search strategies to choose from. 1 23 4 5 6 78
The Astar subfolder also contains an additional class (EpuzzGen) that will allow you to generate a random 8-puzzle. You use it like this: // generator given seed int seed 23456; EpuzzGen gen = new EpuzzGen (seed); // generate puzzle providing difficulty int d = 6; int[] [] puzz = gen.puzzGen (d); The parameter provided (seed='12345') is a random seed which you choose. You can miss it out, but if you include it you will be able to try the same set of puzzles with different strategies. This is useful when you want to compare different algorithms. The puzzle is returned as a 3 by 3 matrix of ints. The empty tile is rep- resented by a 0. The parameter ('6' here) allows you some control over the degree of difficulty of the problem - i.e., how much search will be required to find the solution, on average. The higher it is, the more difficult. Don't go below 6; 12 is hard. You can call puzzGen() as many times as you like. Each time it will give you a new puzzle. Only 50% of 8-puzzles have a solution, but there is a way of deciding whether a given puzzle is solvable. That check is coded into puzzGen so all the puzzles it generates are solvable. What you must do Using the Java code provided for the assignment do the following five tasks: Task 0: Set up a GitHub (or similar) repository for keeping versions of your code as you develop your solution. The repository should be private¹ ¹Uploading copyrighted material to a public website can be considered as grounds for an unfair means case by the University. 3
and you do not need to share it with me unless I request to see it. Make sure to push updates regularly. The purpose of using a git repository is twofold: i) to develop good habits and practice around version control, and ii) in case of a suspicion of unfair means, you have clear evidence that code was developed along the way by yourself. You must add the url of your github repository to your ATEX report (I've added a nifty little footnote to the title where this info should go (marks are deducted if this is missing)). Task 1: Implement and test the 8-puzzle search for breath-first search The searchEngine/BFS folder contains the code for the simple search engine used for e.g., the jugs problem. The search engine in the searchEngine/BFS folder implements the following search strategies: • Breadth-first • Depth-first The search engine in the searchEngine/Astar folder implements the following search strategies: • Branch-and-Bound • Astar In this case we won't consider depth-first, and branch-and-bound is the same as breadth-first because we have uniform costs. We will compare breadth-first with 2 variants of A* (see later tasks). You should not need to change the code for the search engine except perhaps to control how much it prints as a search proceeds, and to stop the search after a given number of iterations (in an 8-puzzle the search tree can become large). To implement the 8-puzzle breath-first search (BFS) you will need to define a class EpuzzleState and a class EpuzzleSearch (note: we can't have files beginning with an "8" so use "E" instead). You will also need a class for running the tests. Call this RunEpuzzleBFS.
To test your implementation of the breadth-first search you should test the code with the initial configurations (P1, P2, P3) and the same goal state (target) as shown in Figure 2. 1 3 413 2 3 6 1 2 3 4 5 6 426 725 158 758 8 6 4 7 78 P1 P2 P3 target Figure 2: Three test patterns for your BFS and the target configuration. Add the code for this test to RunEpuzzleBFS. Task 2: Implement the 8-puzzle for Astar In the searchEngine/Astar folder, you now need to adapt your 8-puzzle classes for A*. This means that your 8-puzzle state must now include a local cost g (always 1 for the 8-puzzle), and an estimated remaining cost estRemCost, which is used by A* and must be an underestimate of the true cost. Code two alternative methods in your 8-puzzle state class for comput- ing estRemCost, assuming that the target pattern is always the same, as above. • Hamming distance, which is defined as the number of tiles out of place. • Manhattan distance, which is defined as the sum of the moves each tile needs to make before it is in its correct position.
Figure 3 shows an example of how these two distances should be cal- culated for a particular tile configuration. 724 5 18 36 Hamming: 7 (all out of place except 2) Manhattan: 16 (2+0+4+3+1+2+2+2) Figure 3: Illustration of the estRemCost for a particular puzzle configuration using Hamming and Manhattan distances, respectively. Task 3: Compare the efficiency of BFS and A* The experiment is to compare the efficiency of breadth-first, A*(Hamming) and A* (Man- hattan) over a number of puzzles of varying difficulties. You are testing the hypothesis that: A* is more efficient than breath-first, and the efficiency gain is greater the more difficult the problem and the closer the estimates are to the true cost. Perform experiments to test this hypothesis. CAUTION: 8-puzzle search trees can be surprisingly large. You may have to wait a long time for a search to conclude. Task 4: Produce a report Your experimental report should describe your implementations and your results. Your report should include at the very least: • Description of your domain specific implementations for the 8- puzzle domain. • Presentation of results obtained when testing the efficiency of the two search strategies (breadth-first and A*) for different ways of estimating the remaining cost (using Hamming or Manhattan dis- tances) and different difficulties of puzzles. • A comparison of the results - can you verify your hypothesis? 6
A LATEX report template is provided, with compulsory sections specified. You may add more sections if you wish: include in your report what you think is interesting. Technical writing is to the point though, so do not feel the need to add long narratives. Note 1: you must use the ETEX template provided for your report. How- ever, you will not be marked on your ability to use ATEX to format your report (i.e., there are no extra marks for making it look fancy!). That being said, ETEX is an essential piece of software for communicating research and results in engineering and science, so we want you to get experience using it early on. Make sure to submit the pdf of your report, not the .tex file Note 2: you should not have to make any changes to the Java code pro- vided except to control the amount of printout during a search and perhaps to modify what a successful search returns. It's a good idea to revisit the week 1-3 lab classes for a reminder of how you worked with the different search strategies. Note 3: please add this declaration to the top of your report: "I declare that the answers provided in this submission are entirely my own work. I have not discussed the contents of this assessment with anyone else (except for Heidi Christensen or COM1005 GTAs for the purpose of clarification), either in person or via electronic communication. I will not share the assignment sheet with anyone. I will not discuss the tasks with anyone until after the final module results are released." Summary of assignment 1. Implement a breadth-first and an A* search for the 8-puzzle problem using the code provided. 2. Run your code with different different estimates for the remaining costs and different difficulties of puzzles to assess the efficiency of the two types of search algorithms as described above. 3. Complete your report with the results and conclusions.
What to submit Submit your solution, as a zipped file called SURNAME_FIRSTNAME.zip, where SURNAME is your surname (family name), and FIRSTNAME is your first name (given name). This zip file should contain: • a .pdf copy of your report named SURNAME_FIRSTNAME.pdf • your code (include the full searchEngine folder including the files pro- vided with the assignment.
