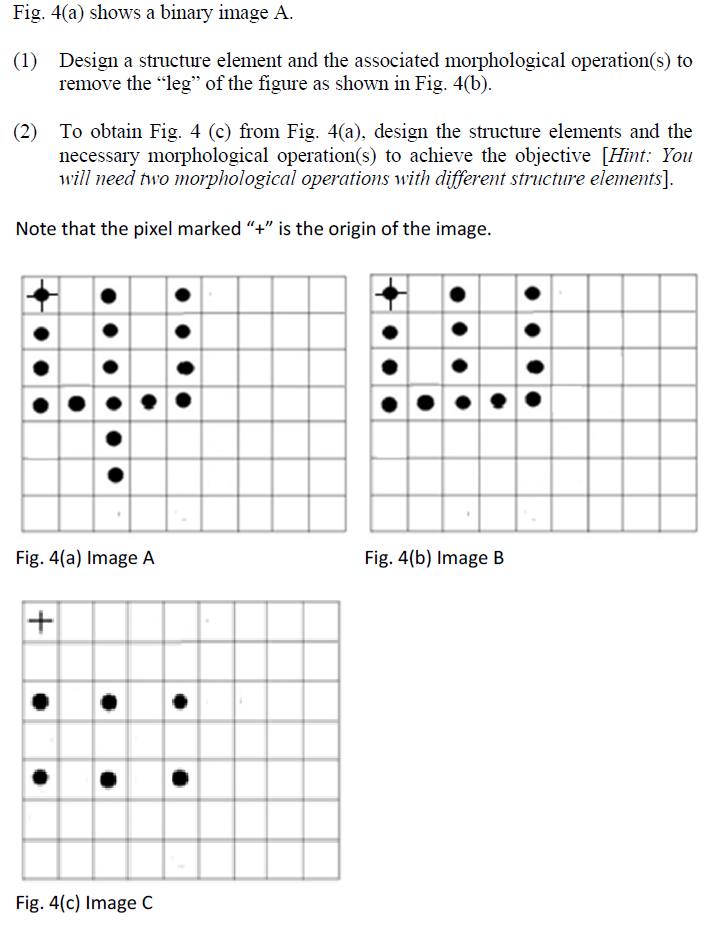

Fig. 4(a) shows a binary image A. (1) Design a structure element and the associated morphological operation(s) to remove the "leg" of the figure as shown in Fig. 4(b). (2) To obtain Fig. 4 (c) from Fig. 4(a), design the structure elements and the necessary morphological operation(s) to achieve the objective [Hint: You will need two morphological operations with different structure elements]. Note that the pixel marked "+" is the origin of the image. Fig. 4(a) Image A Fig. 4(b) Image B + Fig. 4(c) Image C

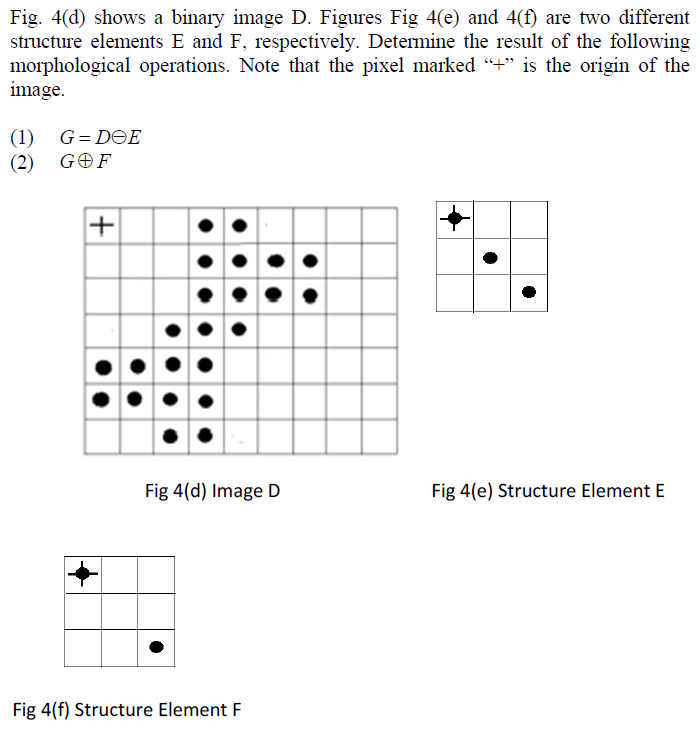

Fig. 4(d) shows a binary image D. Figures Fig 4(e) and 4(f) are two different structure elements E and F, respectively. Determine the result of the following morphological operations. Note that the pixel marked "+" is the origin of the image. (1) G=D=E (2) GOF Fig 4(e) Structure Element E + Fig 4(d) Image D Fig 4(f) Structure Element F
