Problem II: A concrete-lined rectangular canal (Figure 3) is designed to carry a discharge of 10,000 cfs. In terms of th

Post by answerhappygod »

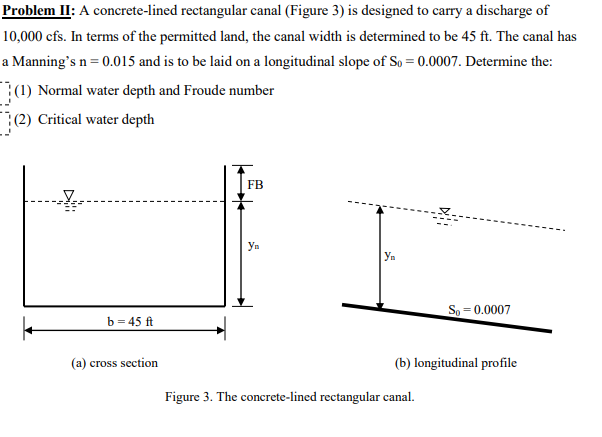

Problem Ii A Concrete Lined Rectangular Canal Figure 3 Is Designed To Carry A Discharge Of 10 000 Cfs In Terms Of Th 1
Problem Ii A Concrete Lined Rectangular Canal Figure 3 Is Designed To Carry A Discharge Of 10 000 Cfs In Terms Of Th 1 (47.13 KiB) Viewed 30 times
Please DO NOT copy from existing answers currently posted on
answers because they are WRONG. Thank you
Problem II: A concrete-lined rectangular canal (Figure 3) is designed to carry a discharge of 10,000 cfs. In terms of the permitted land, the canal width is determined to be 45 ft. The canal has a Manning's n = 0.015 and is to be laid on a longitudinal slope of So= 0.0007. Determine the: (1) Normal water depth and Froude number (2) Critical water depth FB Yn So = 0.0007 b = 45 ft (a) cross section (b) longitudinal profile * yn Figure 3. The concrete-lined rectangular canal.
