ion Determine end reactions for Beam B-1 and Girder G-1. L1 H B-1 G-1 H H • L1= 24 ft • L2= 6 ft • Live load = 35 psf 4"

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

ion Determine end reactions for Beam B-1 and Girder G-1. L1 H B-1 G-1 H H • L1= 24 ft • L2= 6 ft • Live load = 35 psf 4"

Post by answerhappygod »

Ion Determine End Reactions For Beam B 1 And Girder G 1 L1 H B 1 G 1 H H L1 24 Ft L2 6 Ft Live Load 35 Psf 4 1
Ion Determine End Reactions For Beam B 1 And Girder G 1 L1 H B 1 G 1 H H L1 24 Ft L2 6 Ft Live Load 35 Psf 4 1 (42.1 KiB) Viewed 25 times

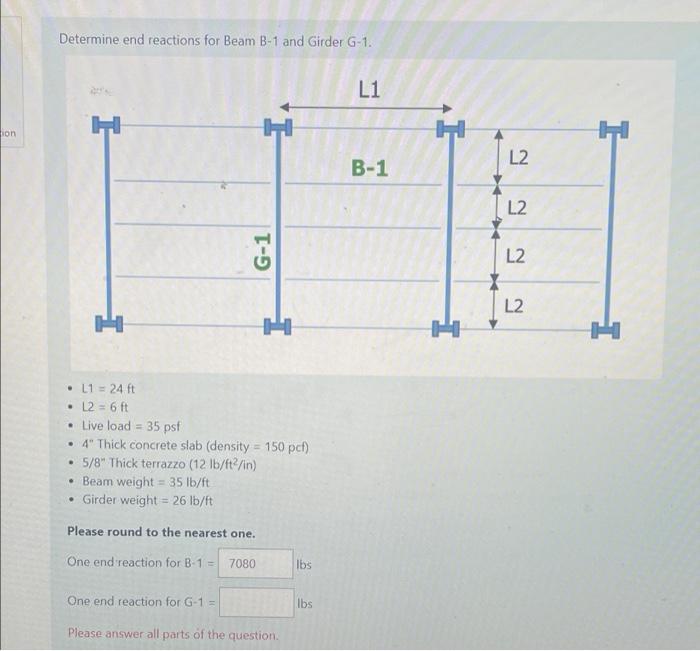

ion Determine end reactions for Beam B-1 and Girder G-1. L1 H B-1 G-1 H H • L1= 24 ft • L2= 6 ft • Live load = 35 psf 4" Thick concrete slab (density = 150 pcf) . 5/8" Thick terrazzo (12 lb/ft2/in) • Beam weight = 35 lb/ft • Girder weight = 26 lb/ft Please round to the nearest one. One end reaction for B-1 = 7080 lbs One end reaction for G-1 = Please answer all parts of the question. lbs H 44 L2 L2 L2 L2 I
