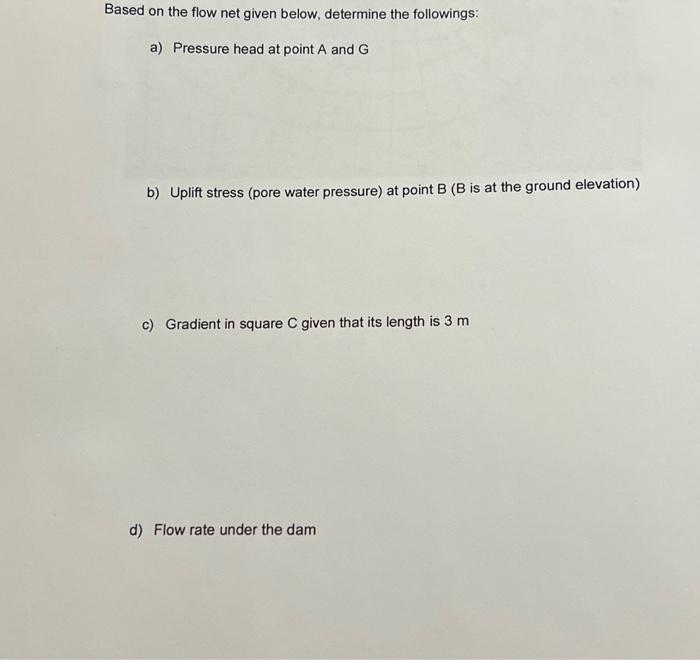

Based on the flow net given below, determine the followings: a) Pressure head at point A and G b) Uplift stress (pore water pressure) at point B (B is at the ground elevation) c) Gradient in square C given that its length is 3 m d) Flow rate under the dam

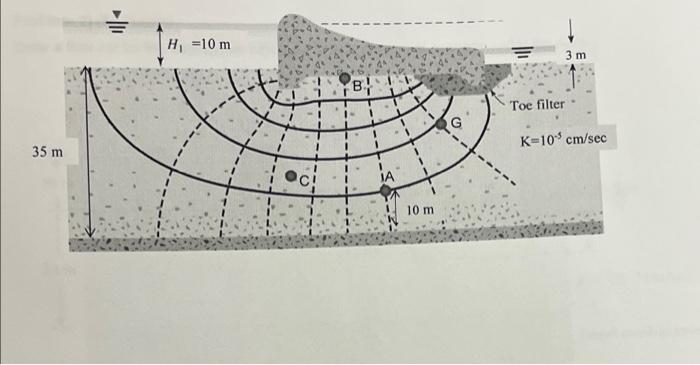

35 m H₁ =10 m B -1 10 mi 3m Toe filter K-10³ cm/sec
