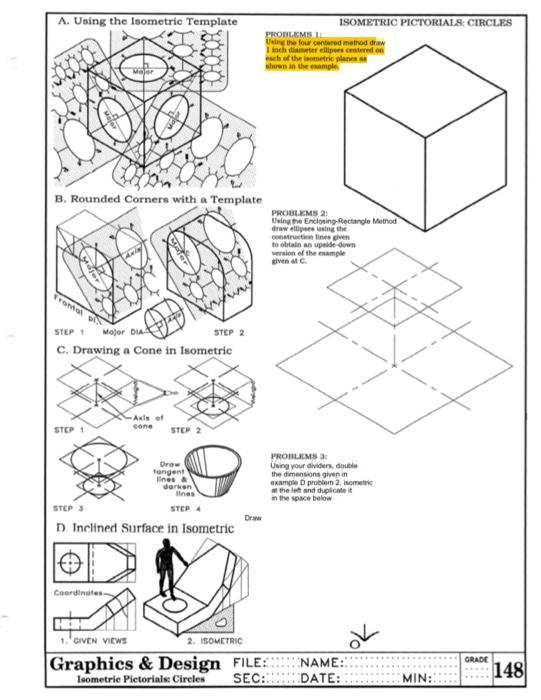

- A Using The Isometric Template Majer B Rounded Corners With A Template Frontal Pl Step 2 Step 1 Major Dia C Drawing A 1 (60.05 KiB) Viewed 22 times
A. Using the Isometric Template Majer B. Rounded Corners with a Template Frontal pl STEP 2 STEP 1 Major DIA C. Drawing a Cone in Isometric Axis of cone STEP 2 STEP 1 STEP 3 STEP 4 D. Inclined Surface in Isometric Coordinates 1. GIVEN VIEWS 2. ISOMETRIC Graphics & Design FILE: SEC: Isometric Pictorials: Circles Draw tangent lines & darken lines Draw ISOMETRIC PICTORIALS: CIRCLES PROBLEMS I Using the four centered method draw 1 inch diameter ellipees centered on each of the isometric planes sa shown in the example. PROBLEMS 2: Using the Enclosing-Rectangle Method draw ellipses using the construction lines given to obtain an upside down version of the example given at C. PROBLEMS 3: Using your dividers, double the dimensions given in example D problem 2. isometric at the left and duplicate it in the space below NAME: DATE: MIN: GRADE 148
