Consider the upward flow of water through a layer of sand in a tank as shown in the Figure below. For the sand, the foll

Post by answerhappygod »

Consider The Upward Flow Of Water Through A Layer Of Sand In A Tank As Shown In The Figure Below For The Sand The Foll 1
Consider The Upward Flow Of Water Through A Layer Of Sand In A Tank As Shown In The Figure Below For The Sand The Foll 1 (34.59 KiB) Viewed 30 times

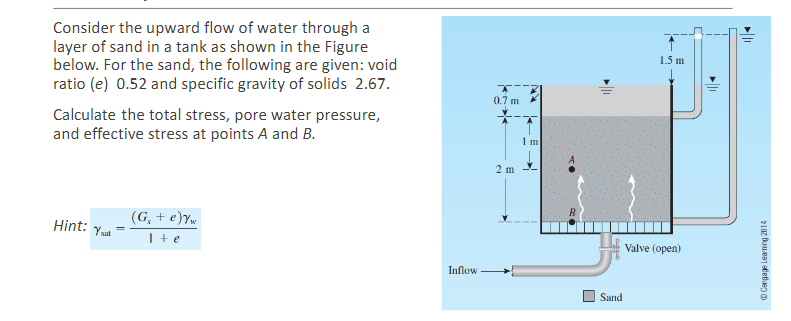

Consider the upward flow of water through a layer of sand in a tank as shown in the Figure below. For the sand, the following are given: void ratio (e) 0.52 and specific gravity of solids 2.67. Calculate the total stress, pore water pressure, and effective stress at points A and B. Hint: Ya (G, + e)yw 1+e Inflow 0.7 m 2 m 1 m Sand 1.5 m Valve (open) ⒸCengage Learning 2014
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
