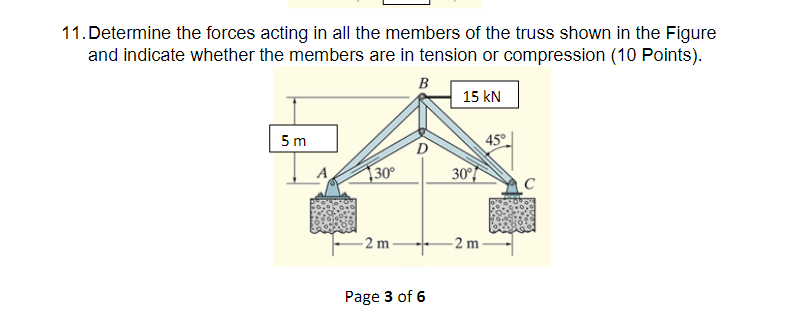

11. Determine the forces acting in all the members of the truss shown in the Figure and indicate whether the members are in tension or compression (10 Points). B 15 kN 5 m 30° -2m Page 3 of 6 45° 30° -2m- C
14. Determine the resultant internal loadings acting on the cross section at C of the cantilevered bean shown in the Figure (20 Points). 1,200 N/m B C 32 m Page 4 of 6 A 18
