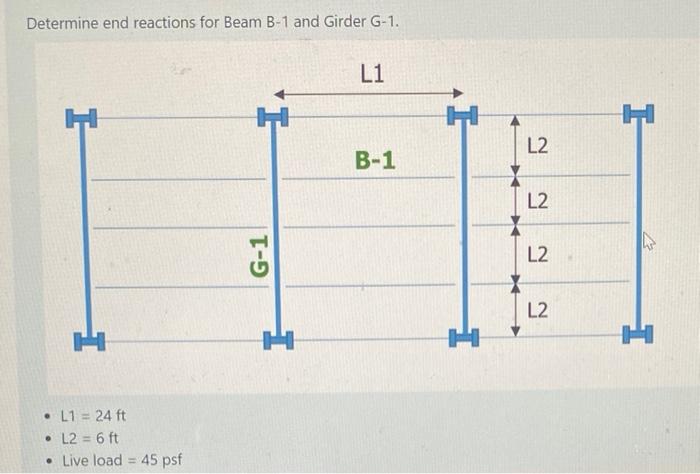

Determine end reactions for Beam B-1 and Girder G-1. L1 B-1 I I I • L1= 24 ft • L2= 6 ft • Live load = 45 psf G-1 H H L2 L2 L2 L2 I

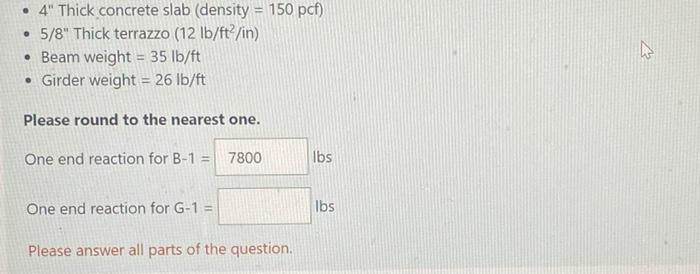

• 4" Thick concrete slab (density = 150 pcf) • 5/8" Thick terrazzo (12 lb/ft2/in) • Beam weight = 35 lb/ft • Girder weight = 26 lb/ft Please round to the nearest one. One end reaction for B-1 = 7800 lbs One end reaction for G-1 = Please answer all parts of the question. lbs
