A simply supported A992 W14 × 90 beam with a 22 ft. span is uniformly loaded with an ultimate load wu = 9 k/ft. The beam

Post by answerhappygod »

A Simply Supported A992 W14 90 Beam With A 22 Ft Span Is Uniformly Loaded With An Ultimate Load Wu 9 K Ft The Beam 1
A Simply Supported A992 W14 90 Beam With A 22 Ft Span Is Uniformly Loaded With An Ultimate Load Wu 9 K Ft The Beam 1 (38.14 KiB) Viewed 26 times

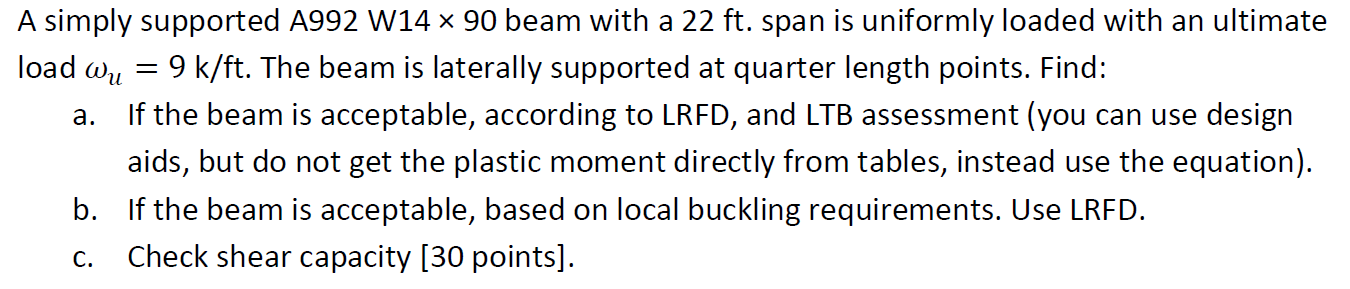

A simply supported A992 W14 × 90 beam with a 22 ft. span is uniformly loaded with an ultimate load wu = 9 k/ft. The beam is laterally supported at quarter length points. Find: a. If the beam is acceptable, according to LRFD, and LTB assessment (you can use design aids, but do not get the plastic moment directly from tables, instead use the equation). b. If the beam is acceptable, based on local buckling requirements. Use LRFD. Check shear capacity [30 points]. C.
