QUESTION 5 A thick cylinder 1.2 m internal diameter, 5 m long with walls 50 mm thick is subjected to an internal pressur

Post by answerhappygod »

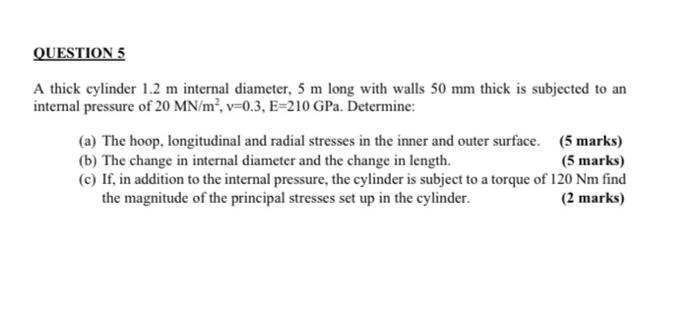

Question 5 A Thick Cylinder 1 2 M Internal Diameter 5 M Long With Walls 50 Mm Thick Is Subjected To An Internal Pressur 1
Question 5 A Thick Cylinder 1 2 M Internal Diameter 5 M Long With Walls 50 Mm Thick Is Subjected To An Internal Pressur 1 (20.85 KiB) Viewed 32 times
QUESTION 5 A thick cylinder 1.2 m internal diameter, 5 m long with walls 50 mm thick is subjected to an internal pressure of 20 MN/m², v=0.3, E-210 GPa. Determine: (a) The hoop, longitudinal and radial stresses in the inner and outer surface. (b) The change in internal diameter and the change in length. (5 marks) (5 marks) 120 Nm find (c) If, in addition to the internal pressure, the cylinder is subject to a torque of the magnitude of the principal stresses set up in the cylinder. (2 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
