For the beam loaded as shown,
a.) Determine the support reactions.
b.) Write the shear and moment equations for every change of
loading positions.
c.) Draw the shear-force and bending-moment diagrams for this beam.
Specify values at all change of loading positions and at
points of zero shear.

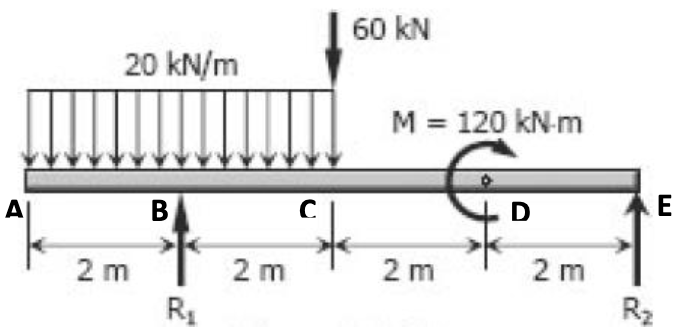

For The Beam Loaded As Shown A Determine The Support Reactions B Write The Shear And Moment Equations For Every Ch 1 (98.57 KiB) Viewed 19 times
A 20 kN/m B 2 m R₁ 2 m C 60 KN M = 120 kN-m D 2 m 2 m R₂ E
