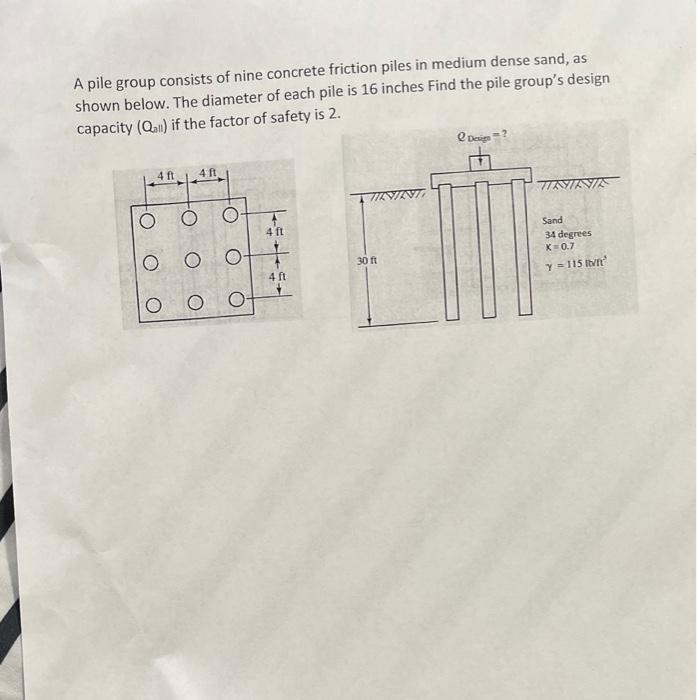

A pile group consists of nine concrete friction piles in medium dense sand, as shown below. The diameter of each pile is 16 inches Find the pile group's design capacity (Qal) if the factor of safety is 2. Design 4 ft 4 ft NINT TINTI O O 4 ft Sand OOO- 34 degrees K=0.7 4 ft Y = 115 ltvit O 30 ft

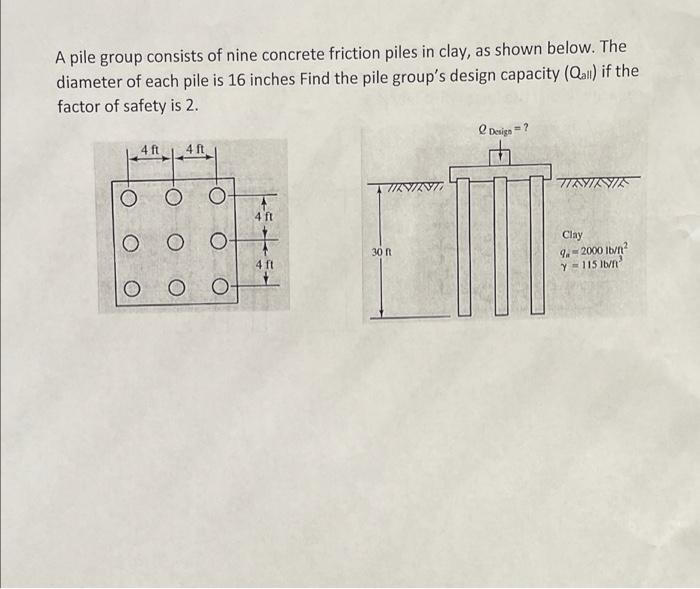

A pile group consists of nine concrete friction piles in clay, as shown below. The diameter of each pile is 16 inches Find the pile group's design capacity (Qall) if the factor of safety is 2. Design = ? 4 ft 4 ft TIKVIESTI THAT 4 ft Clay 4 ft 9-2000 lb/n² Y = 115 lb/m² O O OOO- O O 30 ft
