QUESTION 1 A simple supported beam is shown in Figure 1. Determine the maximum tensile stress and maximum compressive st

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

QUESTION 1 A simple supported beam is shown in Figure 1. Determine the maximum tensile stress and maximum compressive st

Post by answerhappygod »

Question 1 A Simple Supported Beam Is Shown In Figure 1 Determine The Maximum Tensile Stress And Maximum Compressive St 1
Question 1 A Simple Supported Beam Is Shown In Figure 1 Determine The Maximum Tensile Stress And Maximum Compressive St 1 (20.34 KiB) Viewed 23 times

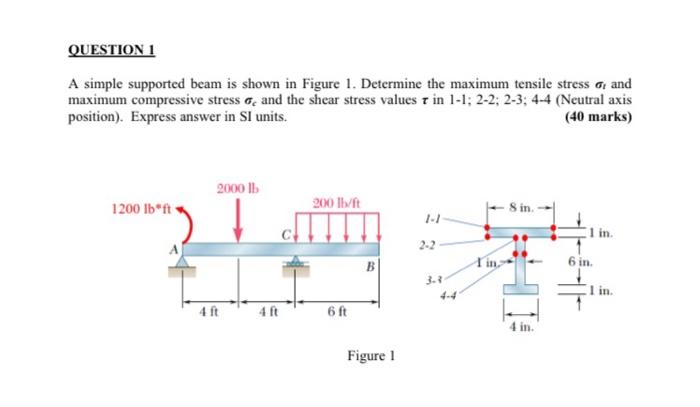

QUESTION 1 A simple supported beam is shown in Figure 1. Determine the maximum tensile stress and maximum compressive stress, and the shear stress values r in 1-1; 2-2; 2-3; 4-4 (Neutral axis position). Express answer in SI units. (40 marks) 2000 lb 200 lb/ft 1200 lb ft 8 in. 21.0 1 in. 2-2 4 ft 6 ft Figure 1 3.3 in 4 in. 6 in. in.
