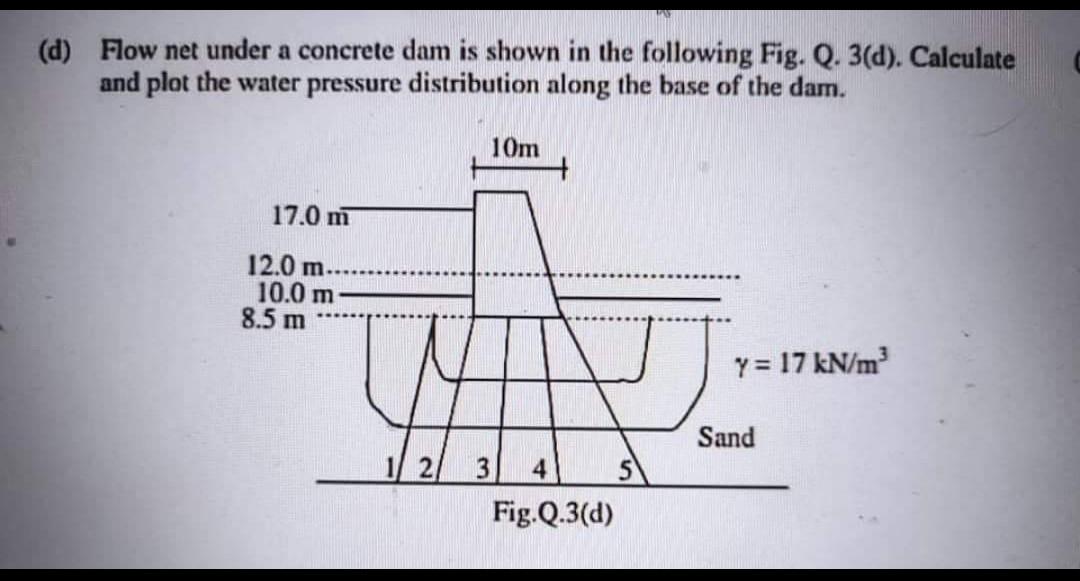

(d) Flow net under a concrete dam is shown in the following Fig. Q. 3(d). Calculate and plot the water pressure distribution along the base of the dam. 10m 17.0 m y = 17 kN/m³ 12.0 m. 10.0 m 8.5 m 1/ 2/ 3 4 Fig.Q.3(d) Sand
