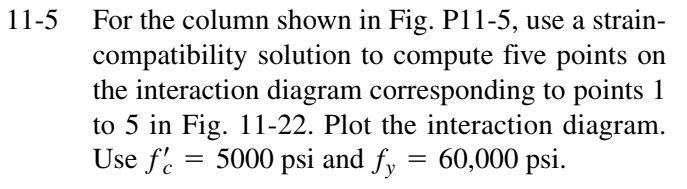

11-5 For the column shown in Fig. P11-5, use a strain- compatibility solution to compute five points on the interaction diagram corresponding to points 1 to 5 in Fig. 11-22. Plot the interaction diagram. 5000 psi and fy Use fe = = 60,000 psi.

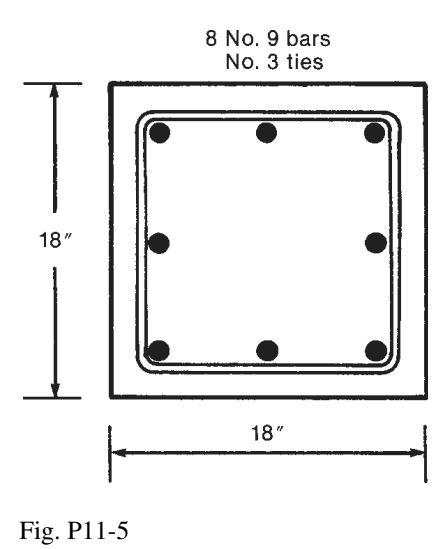

18" Fig. P11-5 8 No. 9 bars No. 3 ties 18"
