Determine the loads developed in each column support at 2-A, 2-B, and 2-C, including the column weight. 16' 12' Live loa

Post by answerhappygod »

Determine The Loads Developed In Each Column Support At 2 A 2 B And 2 C Including The Column Weight 16 12 Live Loa 1
Determine The Loads Developed In Each Column Support At 2 A 2 B And 2 C Including The Column Weight 16 12 Live Loa 1 (61.08 KiB) Viewed 31 times

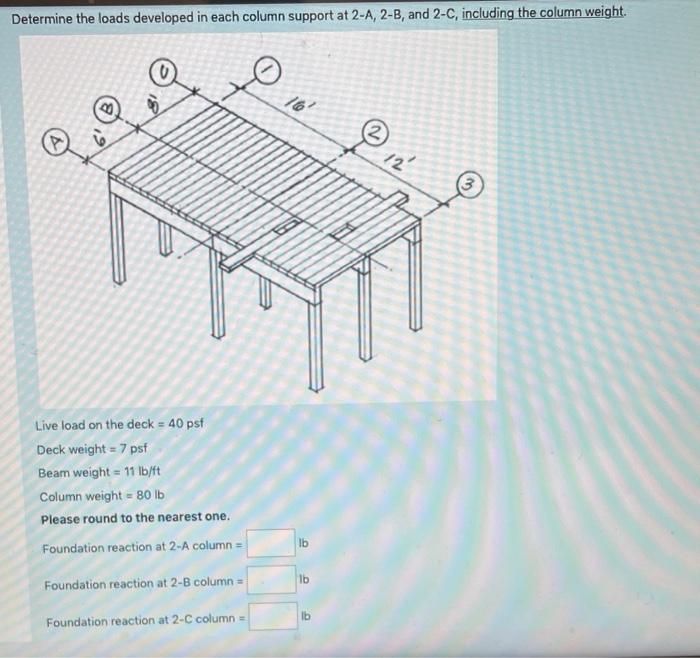

Determine the loads developed in each column support at 2-A, 2-B, and 2-C, including the column weight. 16' 12' Live load on the deck = 40 psf Deck weight = 7 psf Beam weight = 11 lb/ft Column weight = 80 lb Please round to the nearest one. Foundation reaction at 2-A column= Foundation reaction at 2-B column= Foundation reaction at 2-C column= lb lb 6 (3
