*9-8. Determine the reactions at the supports, then draw the shear and moment diagrams. Assume A and Care rollers and B

Post by answerhappygod »

9 8 Determine The Reactions At The Supports Then Draw The Shear And Moment Diagrams Assume A And Care Rollers And B 1
9 8 Determine The Reactions At The Supports Then Draw The Shear And Moment Diagrams Assume A And Care Rollers And B 1 (27.72 KiB) Viewed 33 times
Solve by using Moment Area Method. Please show all
steps.
Thank you.

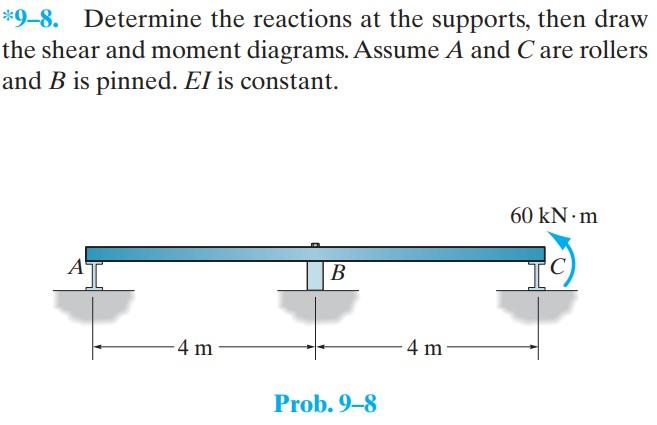

*9-8. Determine the reactions at the supports, then draw the shear and moment diagrams. Assume A and Care rollers and B is pinned. El is constant. 60 kN.m A B 4 m Prob. 9-8 4 m
