Consider a steady, incompressible air flow through a horizontal venturi meter as shown in the schematic. For the pressur

Post by answerhappygod »

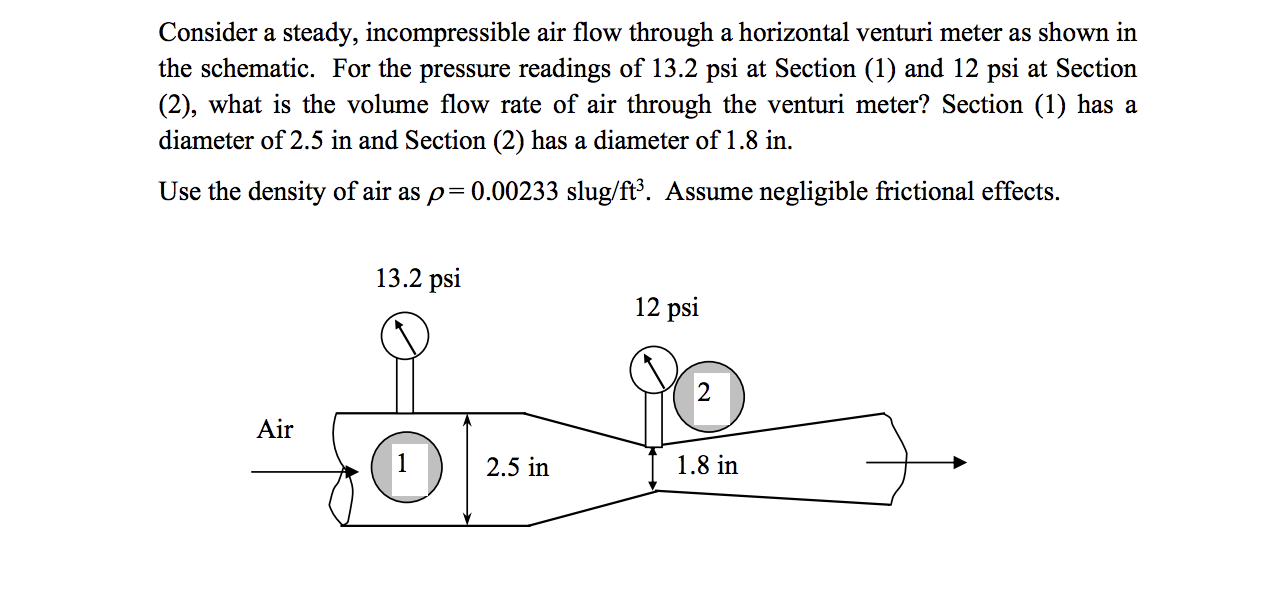

Consider A Steady Incompressible Air Flow Through A Horizontal Venturi Meter As Shown In The Schematic For The Pressur 1
Consider A Steady Incompressible Air Flow Through A Horizontal Venturi Meter As Shown In The Schematic For The Pressur 1 (77.58 KiB) Viewed 29 times
Consider a steady, incompressible air flow through a horizontal venturi meter as shown in the schematic. For the pressure readings of 13.2 psi at Section (1) and 12 psi at Section (2), what is the volume flow rate of air through the venturi meter? Section (1) has a diameter of 2.5 in and Section (2) has a diameter of 1.8 in. Use the density of air as p=0.00233 slug/ft³. Assume negligible frictional effects. 13.2 psi 12 psi Air 2.5 in 1.8 in
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
