please only answer if you know the answer, thanks!

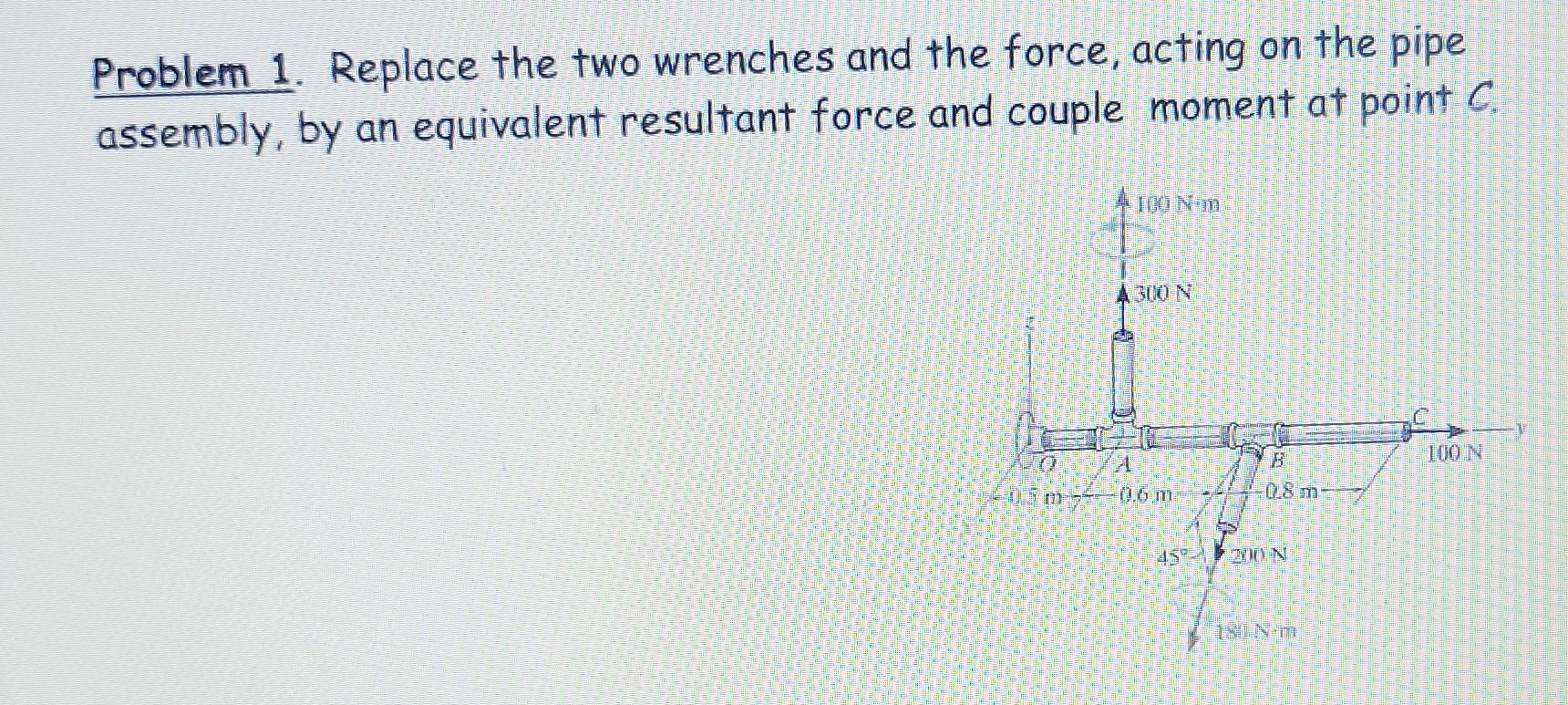

Problem 1. Replace the two wrenches and the force, acting on the pipe assembly, by an equivalent resultant force and couple moment at point C. 100 N U A 100 Nm 300 N 05m 0.6 m -0.8 m- 45% 300N BINT

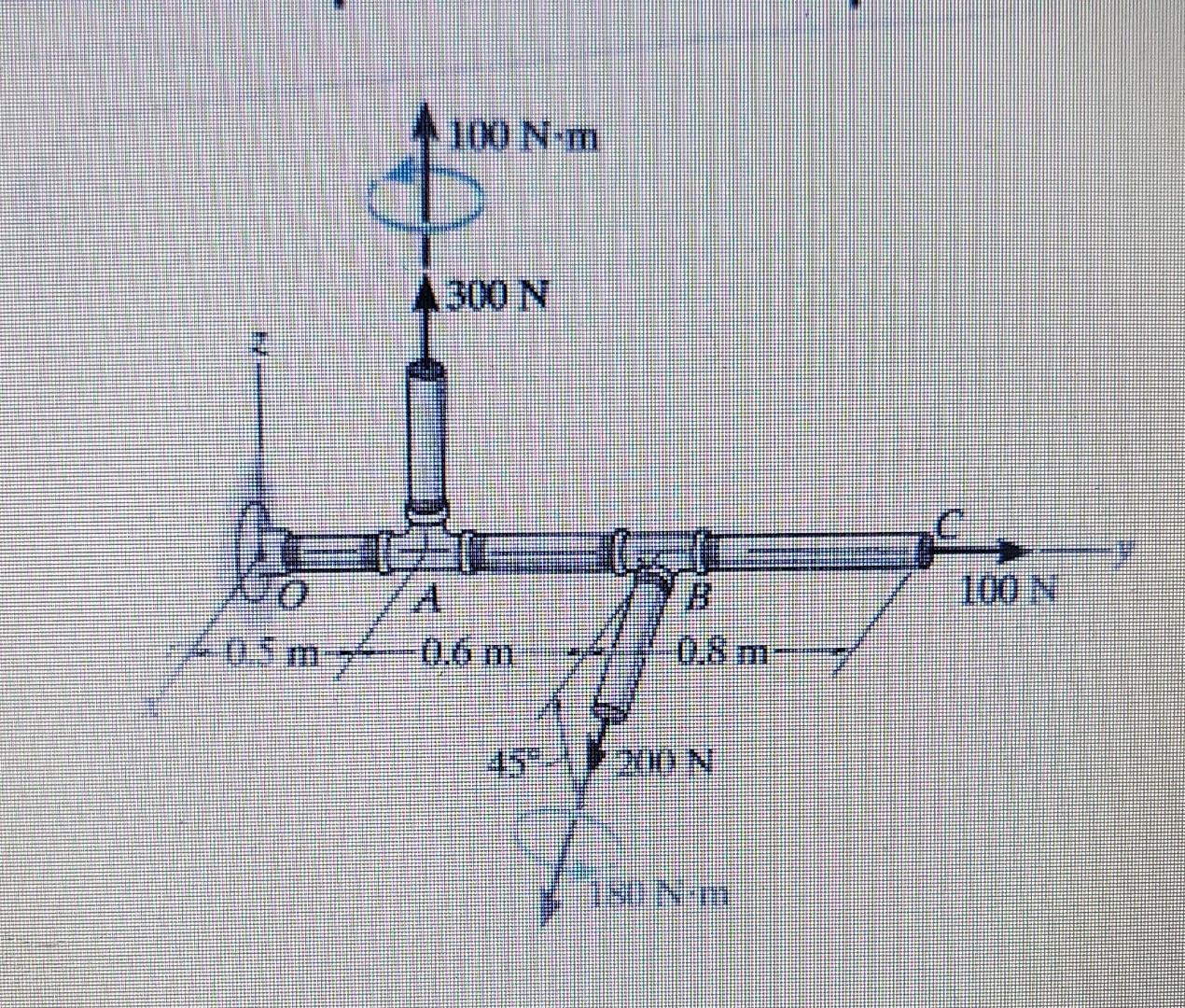

100 N-m D A 300 N -0 ----0.5 m-7--0.6 m C B 0.8 m 45°- 2000 N 79/N=m 100 N
