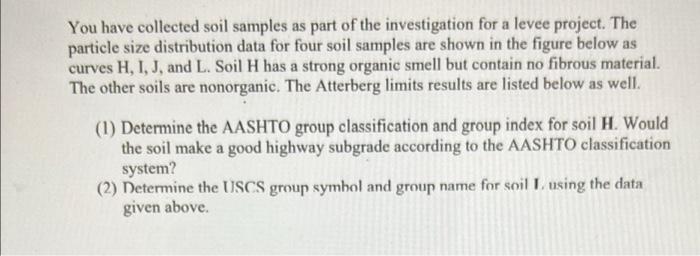

You have collected soil samples as part of the investigation for a levee project. The particle size distribution data for four soil samples are shown in the figure below as curves H, I, J, and L. Soil H has a strong organic smell but contain no fibrous material. The other soils are nonorganic. The Atterberg limits results are listed below as well. (1) Determine the AASHTO group classification and group index for soil H. Would the soil make a good highway subgrade according to the AASHTO classification system? (2) Determine the USCS group symbol and group name for soil I. using the data given above.

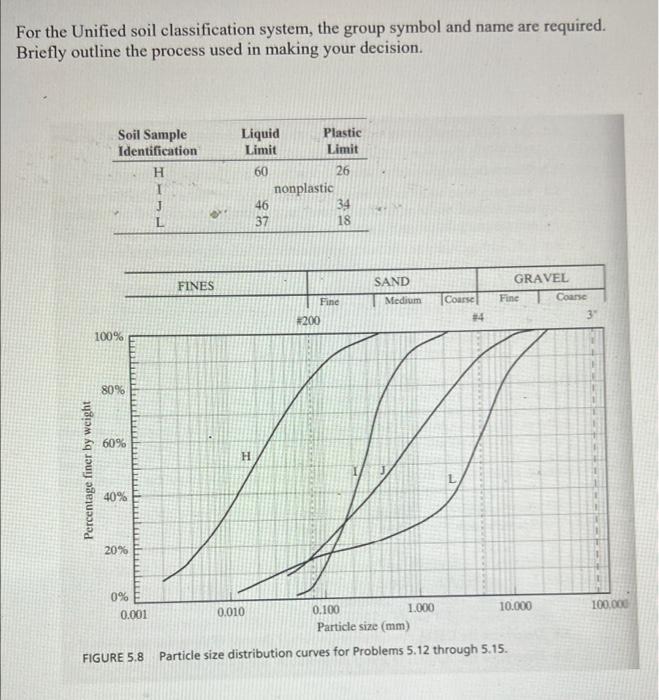

For the Unified soil classification system, the group symbol and name are required. Briefly outline the process used in making your decision. Liquid Plastic Soil Sample Identification Limit Limit H 60 26 I J 46 34 L 37 18 GRAVEL Fine Percentage finer by weight 100% 80% 60% 40% 20% 0% FINES H nonplastic Fine #200 SAND Medium Coarse L #4 wwwww 0.001 0.010 1.000 10.000 0.100 Particle size (mm) FIGURE 5.8 Particle size distribution curves for Problems 5.12 through 5.15. Coarse 3 100.000
