Consider the given state of stress. Take X = 15 MPa and Y= 60 MPa. 25 MPa X Determine the orientation of the planes of m

Post by answerhappygod »

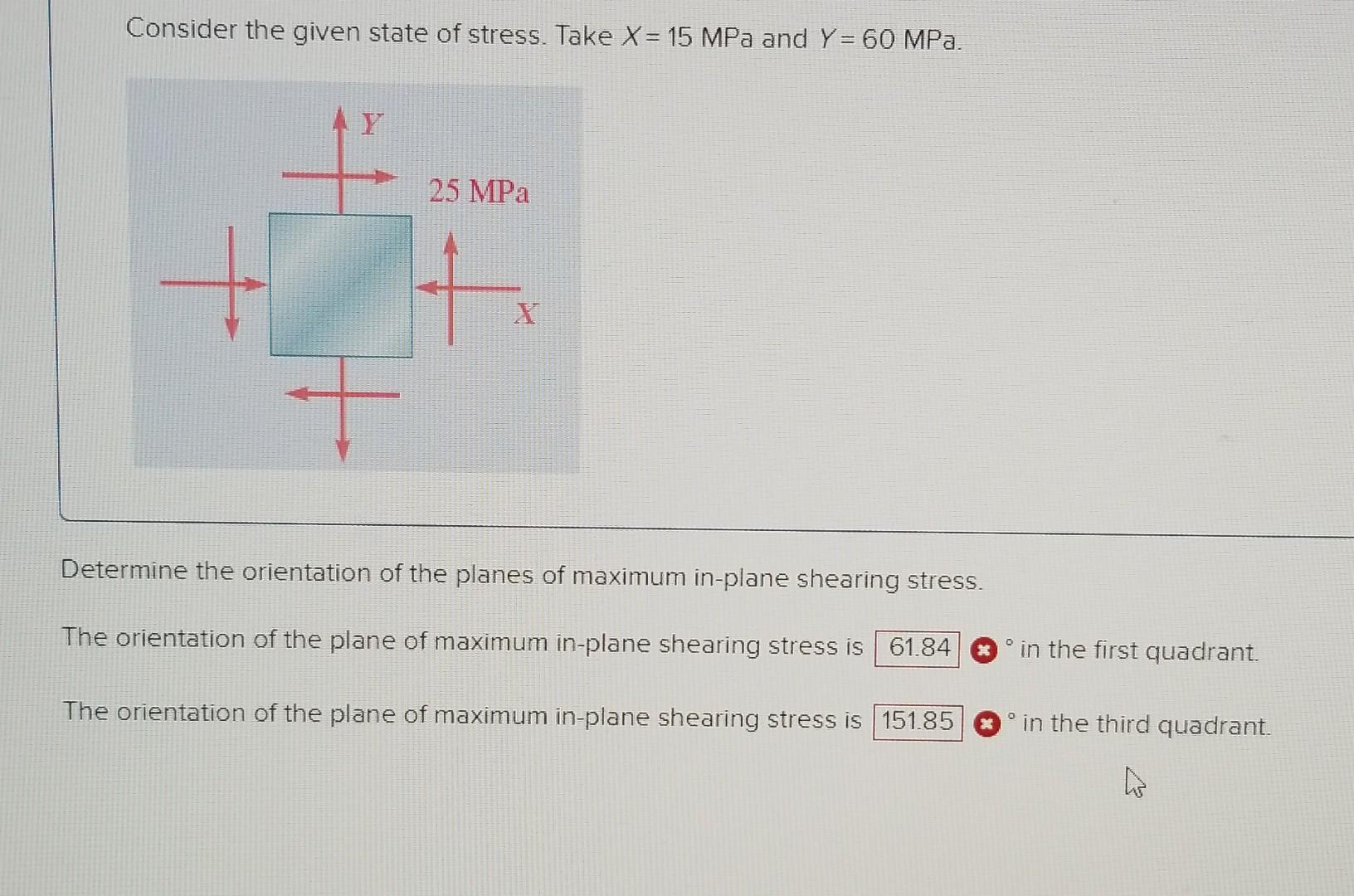

Consider The Given State Of Stress Take X 15 Mpa And Y 60 Mpa 25 Mpa X Determine The Orientation Of The Planes Of M 1
Consider The Given State Of Stress Take X 15 Mpa And Y 60 Mpa 25 Mpa X Determine The Orientation Of The Planes Of M 1 (219.25 KiB) Viewed 37 times
Consider the given state of stress. Take X = 15 MPa and Y= 60 MPa. 25 MPa X Determine the orientation of the planes of maximum in-plane shearing stress. The orientation of the plane of maximum in-plane shearing stress is 61.84 * in the first quadrant. 0 The orientation of the plane of maximum in-plane shearing stress is 151.85 in the third quadrant. 4
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
