Create a HVAC system to the floor plan above. sensible load (Qsensible)+ latant load (people, ventilation, equipment), d

[answerhappygod]

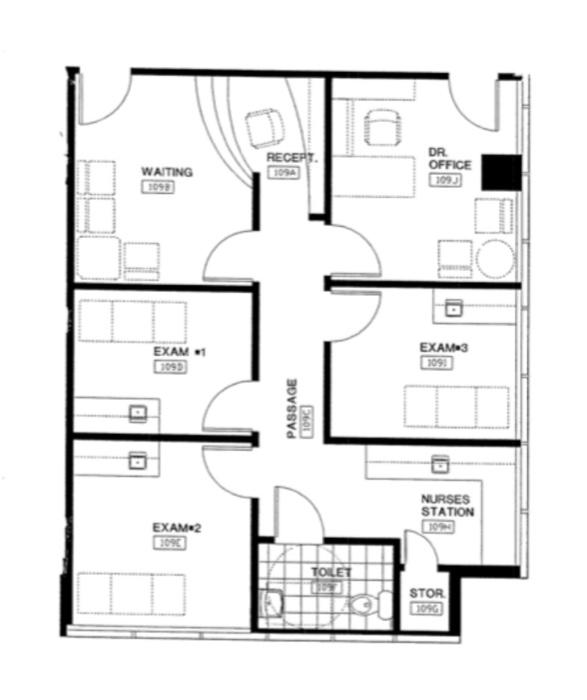

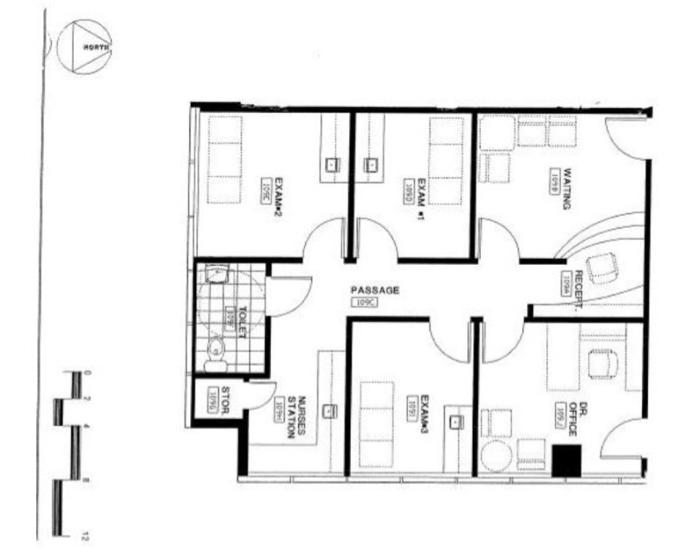

Create a HVAC system to the floor plan above.
sensible load (Qsensible)+ latant load (people,
ventilation, equipment), draw air duct & vent, how much
fm in and how much fm return.
all unknown values can be assumed, city, pressure,
temperature, amount of people, area of the room etc.
However, all the assumption please state in detail with
mathematical work, the values need to be reasonable to
the scenario (ex:12ft^2, 300cfm, 5 people, 75F).
