point The rectangular column shown below must be designed for the loads listed below. Material strengths are fe = 4000 p

Post by answerhappygod »

Point The Rectangular Column Shown Below Must Be Designed For The Loads Listed Below Material Strengths Are Fe 4000 P 1
Point The Rectangular Column Shown Below Must Be Designed For The Loads Listed Below Material Strengths Are Fe 4000 P 1 (30.38 KiB) Viewed 34 times

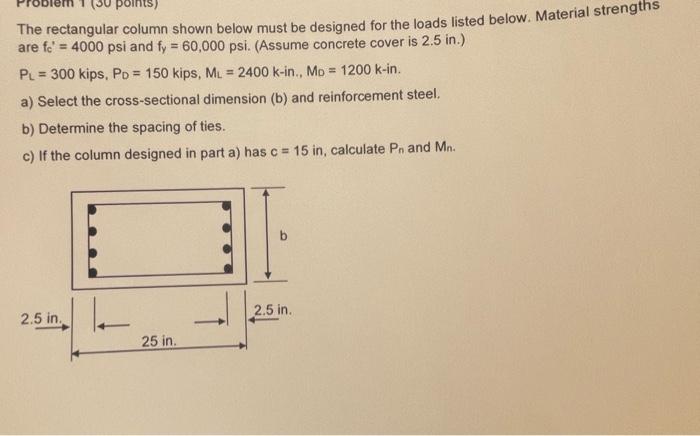

point The rectangular column shown below must be designed for the loads listed below. Material strengths are fe = 4000 psi and fy = 60,000 psi. (Assume concrete cover is 2.5 in.) PL = 300 kips, PD = 150 kips, ML = 2400 k-in., Mo = 1200 k-in. a) Select the cross-sectional dimension (b) and reinforcement steel. b) Determine the spacing of ties. c) If the column designed in part a) has c= 15 in, calculate Pn and Mn. 2.5 in. 2.5 in. 25 in.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
