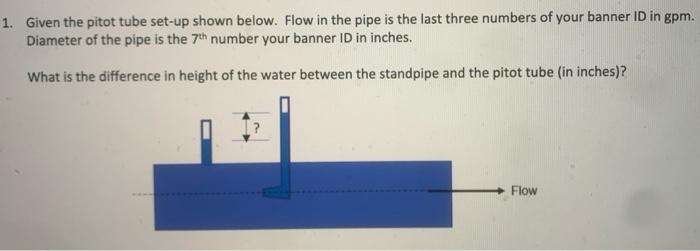

1. Given the pitot tube set-up shown below. Flow in the pipe is the last three numbers of your banner ID in gpm. Diameter of the pipe is the 7th number your banner ID in inches. What is the difference in height of the water between the standpipe and the pitot tube (in inches)? ? Flow
2. With the information from problem #1, and assuming that the elevation of the HGL at the point where the pitot tube is located is 752.0 feet, what is the elevation of the EGL in feet?
