THERON Harrisburg Part B-Solve the following problems (4*10= 40 Points) 1. Determine minimum cyclce length and LOS of we

[answerhappygod]

Theron Harrisburg Part B Solve The Following Problems 4 10 40 Points 1 Determine Minimum Cyclce Length And Los Of We 1 (32.62 KiB) Viewed 29 times

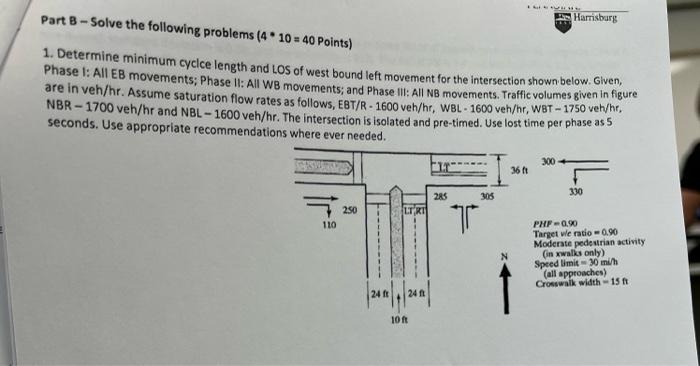

THERON Harrisburg Part B-Solve the following problems (4*10= 40 Points) 1. Determine minimum cyclce length and LOS of west bound left movement for the intersection shown below. Given, Phase 1: All EB movements; Phase II: All WB movements; and Phase III: All NB movements. Traffic volumes given in figure are in veh/hr. Assume saturation flow rates as follows, EBT/R-1600 veh/hr, WBL-1600 veh/hr, WBT-1750 veh/hr, NBR-1700 veh/hr and NBL-1600 veh/hr. The intersection is isolated and pre-timed. Use lost time per phase as 5 seconds. Use appropriate recommendations where ever needed. 300- 36 ft 330 285 LTRI 110 PHF 0.90 Target vle ratio 0.90 Moderate pedestrian activity (in xwalks only) Speed limit-30 mi/h (all approaches) Crosswalk width-15 ft 10 ft 305 T
