Question 3 15 pts From a particular Superpave mix design process, the plots are to be done by using the following data f

[answerhappygod]

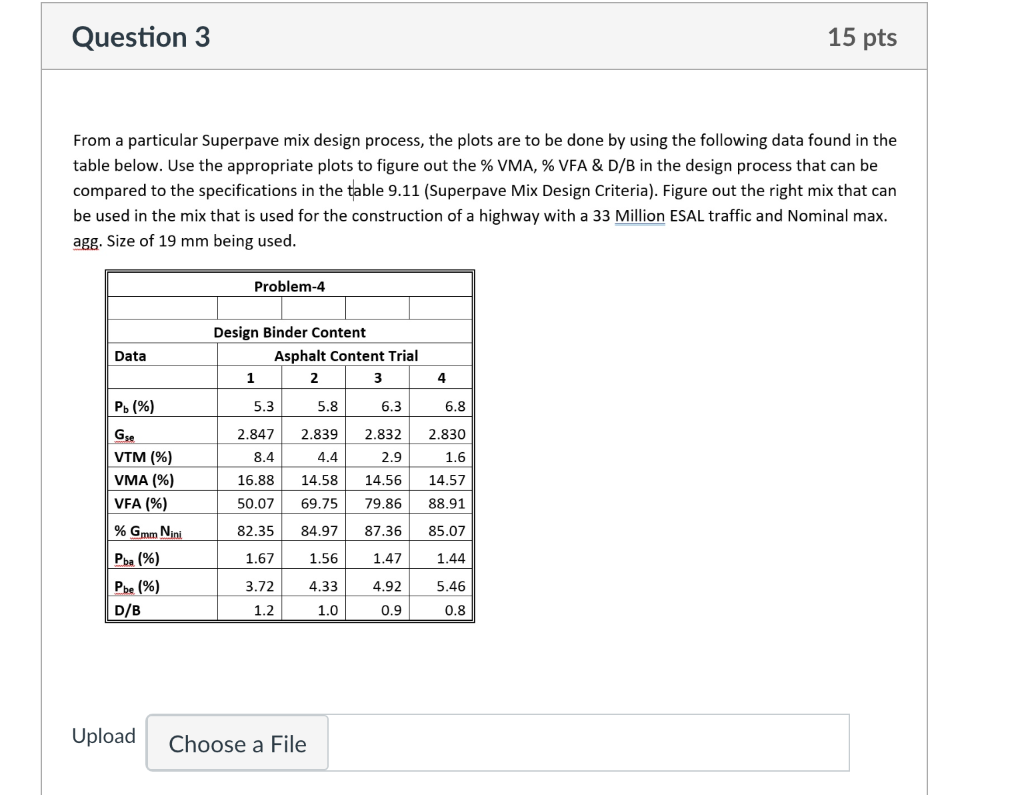

Question 3 15 Pts From A Particular Superpave Mix Design Process The Plots Are To Be Done By Using The Following Data F 1 (134.26 KiB) Viewed 36 times

Question 3 15 pts From a particular Superpave mix design process, the plots are to be done by using the following data found in the table below. Use the appropriate plots to figure out the % VMA, % VFA & D/B in the design process that can be compared to the specifications in the table 9.11 (Superpave Mix Design Criteria). Figure out the right mix that can be used in the mix that is used for the construction of a highway with a 33 Million ESAL traffic and Nominal max. agg. Size of 19 mm being used. Problem-4 Design Binder Content Data Asphalt Content Trial 2 1 3 Pb (%) 5.3 5.8 6.3 6.8 Gse 2.847 2.839 2.832 2.830 VTM (%) 8.4 4.4 2.9 1.6 16.88 14.58 14.56 14.57 VMA (%) VFA (%) 50.07 69.75 79.86 88.91 % Gmm Nini 82.35 84.97 87.36 85.07 Pba (%) 1.67 1.56 1.47 1.44 Pbe (%) 3.72 4.33 4.92 5.46 D/B 1.2 1.0 0.9 0.8 Choose a File Upload 4
