Problem: Analyze the given indeterminate beam using the three-moment equation. Then draw the shear and moment diagram. E

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Problem: Analyze the given indeterminate beam using the three-moment equation. Then draw the shear and moment diagram. E

Post by answerhappygod »

Problem Analyze The Given Indeterminate Beam Using The Three Moment Equation Then Draw The Shear And Moment Diagram E 1
Problem Analyze The Given Indeterminate Beam Using The Three Moment Equation Then Draw The Shear And Moment Diagram E 1 (90.34 KiB) Viewed 38 times

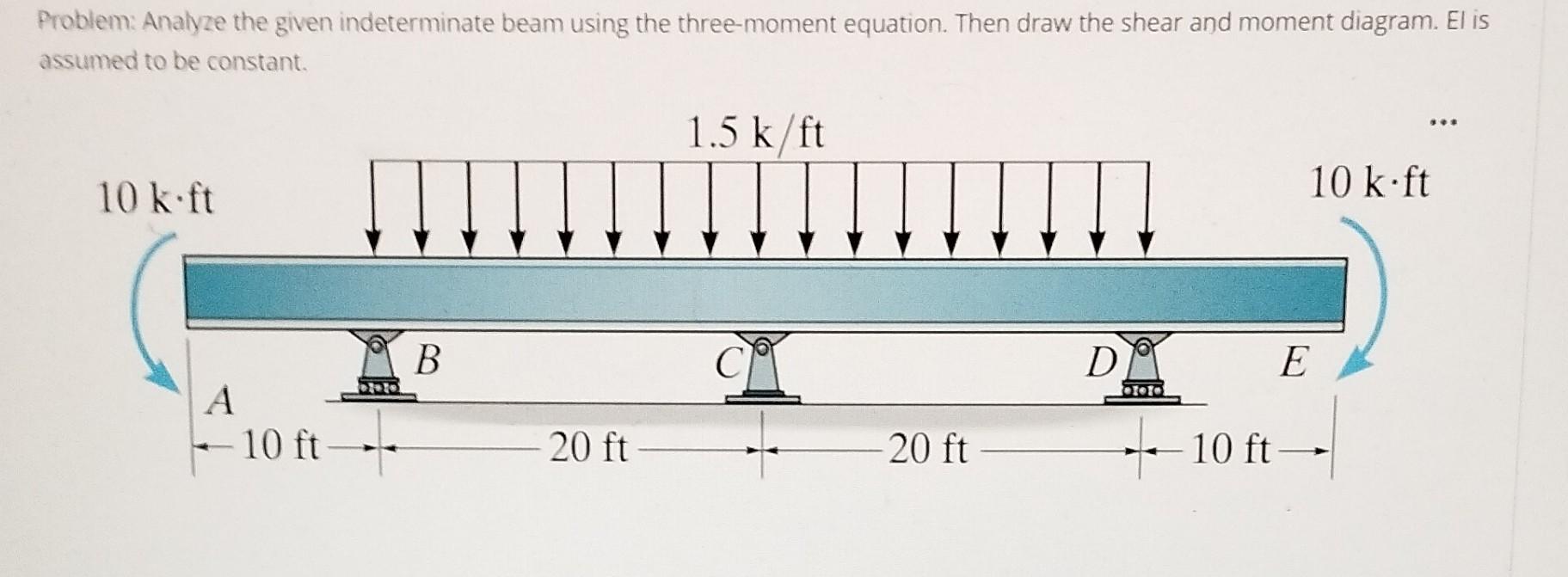

Problem: Analyze the given indeterminate beam using the three-moment equation. Then draw the shear and moment diagram. El is assumed to be constant. *** 1.5 k/ft 10 k.ft 10 k-ft B C D A 10 ft 200 20 ft 20 ft 000 E - 10 ft-
