II. SOLVE: A concrete hollow block fence will be constructed. See details shown below. Show your solutions. 1. Determine

[answerhappygod]

Ii Solve A Concrete Hollow Block Fence Will Be Constructed See Details Shown Below Show Your Solutions 1 Determine 1 (81.25 KiB) Viewed 22 times

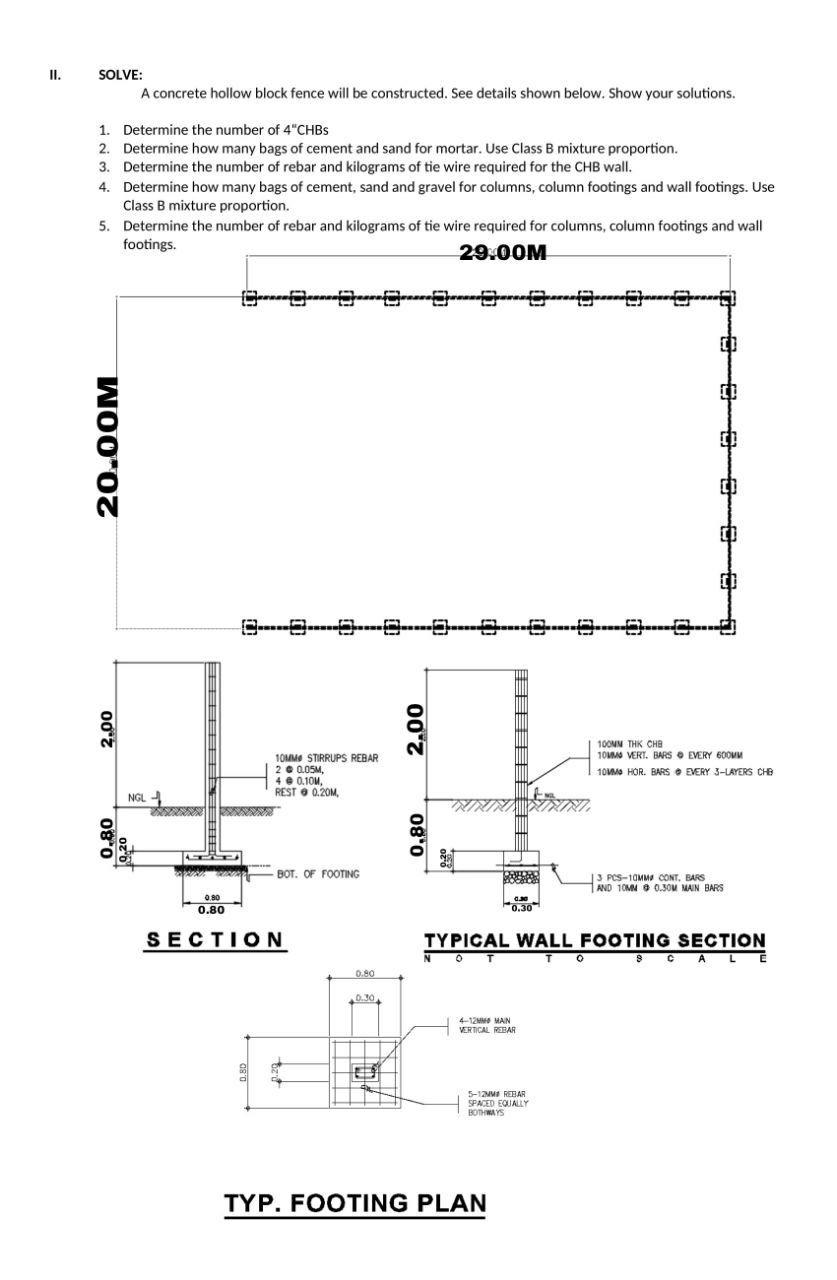

II. SOLVE: A concrete hollow block fence will be constructed. See details shown below. Show your solutions. 1. Determine the number of 4"CHBs 2. Determine how many bags of cement and sand for mortar. Use Class B mixture proportion. 3. Determine the number of rebar and kilograms of tie wire required for the CHB wall. 4. Determine how many bags of cement, sand and gravel for columns, column footings and wall footings. Use Class B mixture proportion. 5. Determine the number of rebar and kilograms of tie wire required for columns, column footings and wall footings. 29.00M -----B-----3----B-8D [] Q ( EVERY 600MM EVERY 3-LAYERS CHB 20.00M 2.00 0.80 NGL 668866 DINNER LIND PREOCU 10MM STIRRUPS REBAR 20.05M, 4 @ 0.10M, REST 0.20M, -BOT. OF FOOTING 0.80 0.80 SECTION 2.00 100MM THK CHB 10MMO VERT. BARS 10MM HOR. BARS TRU 3 PCS-10MM CONT. BARS 1 AND 10MM 0.30M MAIN BARS 0.30 TYPICAL WALL FOOTING SECTION T 0 SCALE 4-12MM MAIN VERTICAL REBAR 0.80 0.30 TYP. FOOTING PLAN 5-12MM REBAR SPACED EQUALLY BOTHWAYS
