Problem 8: (20 points) Must use slope-deflection equations. Draw Bending Moment Diagram, and Determine the angular rotat

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Problem 8: (20 points) Must use slope-deflection equations. Draw Bending Moment Diagram, and Determine the angular rotat

Post by answerhappygod »

Problem 8 20 Points Must Use Slope Deflection Equations Draw Bending Moment Diagram And Determine The Angular Rotat 1
Problem 8 20 Points Must Use Slope Deflection Equations Draw Bending Moment Diagram And Determine The Angular Rotat 1 (18.08 KiB) Viewed 18 times

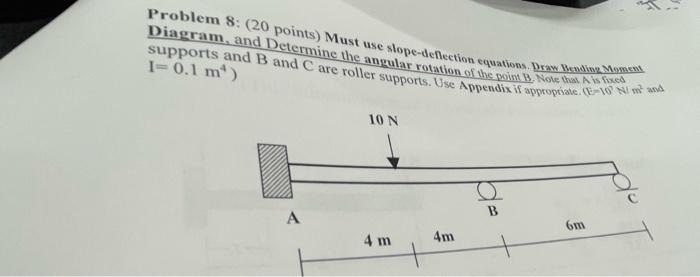

Problem 8: (20 points) Must use slope-deflection equations. Draw Bending Moment Diagram, and Determine the angular rotation of the point B. Note that A is fixed supports and B and C are roller supports. Use Appendix if appropriate. (E-10 N/m² and I= 0.1 m²) 10 N A 6m 4 m 4m
