load of P=1kN at the free end and a u.d.l of q = 300N/m along its
entire length.

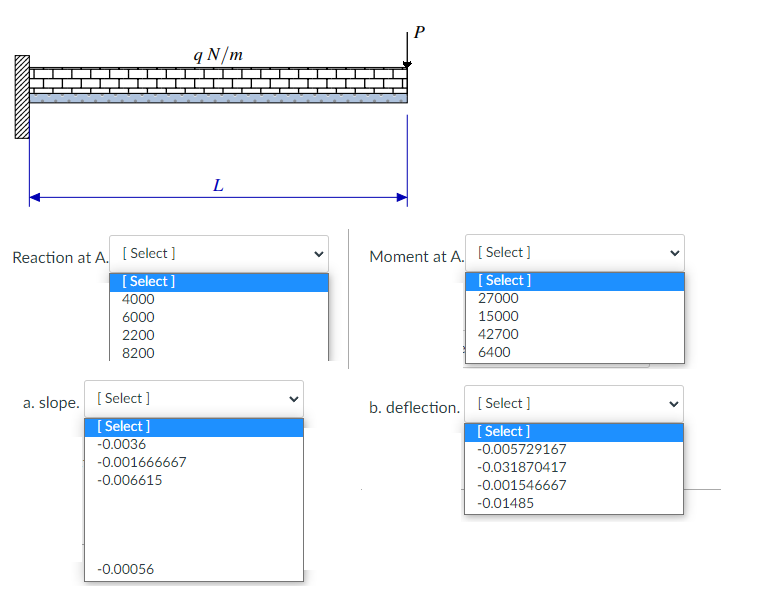

- A Cantilever Beam Is 4m Long With A Ei 20mnm 2 It Has A Point Load Of P 1kn At The Free End And A U D L Of Q 300n M 1 (34.7 KiB) Viewed 16 times
A cantilever beam is 4m long with a EI = 20MNm^2. It has a point load of P=1kN at the free end and a u.d.l of q = 300N/m
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A cantilever beam is 4m long with a EI = 20MNm^2. It has a point load of P=1kN at the free end and a u.d.l of q = 300N/m
A cantilever beam is 4m long with a EI = 20MNm^2. It has a point
load of P=1kN at the free end and a u.d.l of q = 300N/m along its
entire length.
Reaction at A. [Select] [Select] 4000 6000 2200 8200 a. slope. [Select] [Select] -0.0036 -0.001666667 -0.006615 -0.00056 q N/m L < P Moment at A. [Select] [Select] 27000 15000 42700 6400 b. deflection. [Select] [Select] -0.005729167 -0.031870417 -0.001546667 -0.01485
load of P=1kN at the free end and a u.d.l of q = 300N/m along its
entire length.
Reaction at A. [Select] [Select] 4000 6000 2200 8200 a. slope. [Select] [Select] -0.0036 -0.001666667 -0.006615 -0.00056 q N/m L < P Moment at A. [Select] [Select] 27000 15000 42700 6400 b. deflection. [Select] [Select] -0.005729167 -0.031870417 -0.001546667 -0.01485
