Question 6 Determine the equation of the deflection curve for the simply supported beam shown in figure 6. Calculate the

Post by answerhappygod »

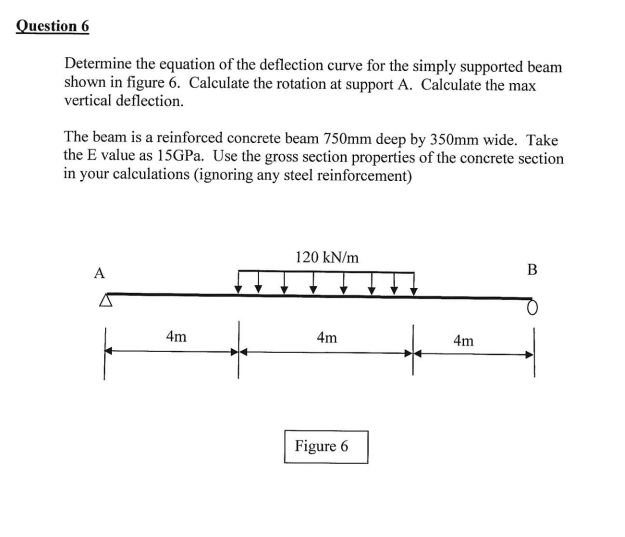

Question 6 Determine The Equation Of The Deflection Curve For The Simply Supported Beam Shown In Figure 6 Calculate The 1
Question 6 Determine The Equation Of The Deflection Curve For The Simply Supported Beam Shown In Figure 6 Calculate The 1 (71.33 KiB) Viewed 35 times
Question 6 Determine the equation of the deflection curve for the simply supported beam shown in figure 6. Calculate the rotation at support A. Calculate the max vertical deflection. The beam is a reinforced concrete beam 750mm deep by 350mm wide. Take the E value as 15GPa. Use the gross section properties of the concrete section in your calculations (ignoring any steel reinforcement) 120 kN/m B A 4m 4m Figure 6 4m
