Question 2 [25 Marks] A steel composite beam section is shown in Fig. 2. The beam is simply supported with a span of 6.5

Post by answerhappygod »

Question 2 25 Marks A Steel Composite Beam Section Is Shown In Fig 2 The Beam Is Simply Supported With A Span Of 6 5 1
Question 2 25 Marks A Steel Composite Beam Section Is Shown In Fig 2 The Beam Is Simply Supported With A Span Of 6 5 1 (97.96 KiB) Viewed 36 times

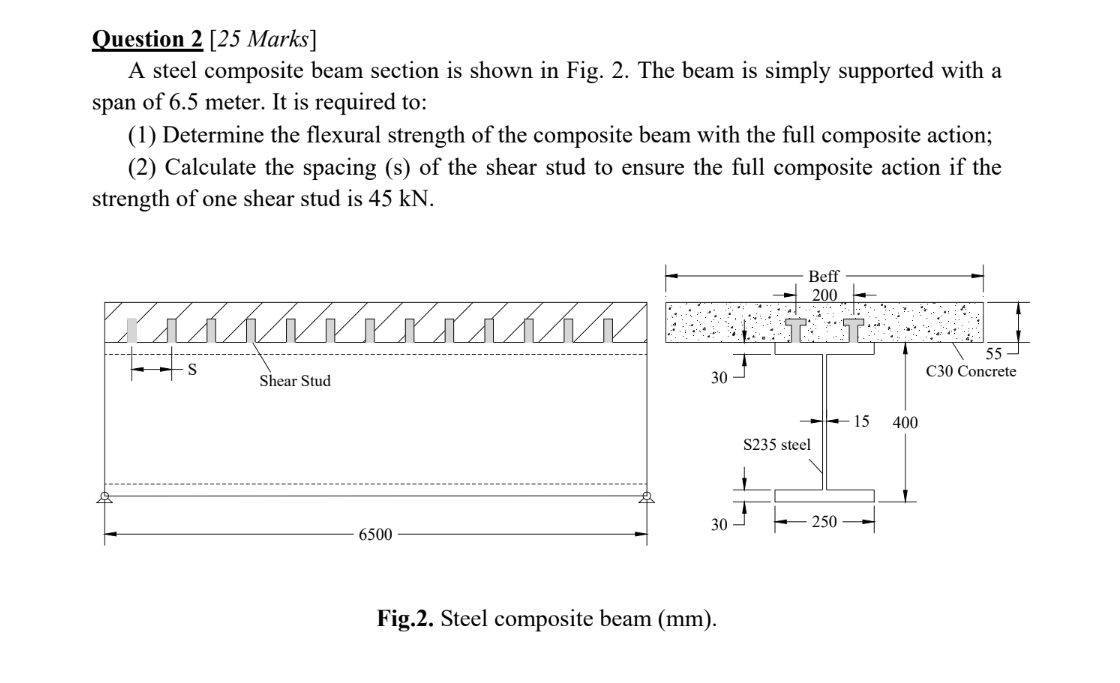

Question 2 [25 Marks] A steel composite beam section is shown in Fig. 2. The beam is simply supported with a span of 6.5 meter. It is required to: (1) Determine the flexural strength of the composite beam with the full composite action; (2) Calculate the spacing (s) of the shear stud to ensure the full composite action if the strength of one shear stud is 45 kN. Beff 200 N 55 C30 Concrete Shear Stud 30- 6500 Fig.2. Steel composite beam (mm). S 30 S235 steel 250 15 400
