Determine the maximum applied factored load, Pu that may be applied to the double-angle assembly shown. You do not need

Post by answerhappygod »

Determine The Maximum Applied Factored Load Pu That May Be Applied To The Double Angle Assembly Shown You Do Not Need 1
Determine The Maximum Applied Factored Load Pu That May Be Applied To The Double Angle Assembly Shown You Do Not Need 1 (27.27 KiB) Viewed 36 times

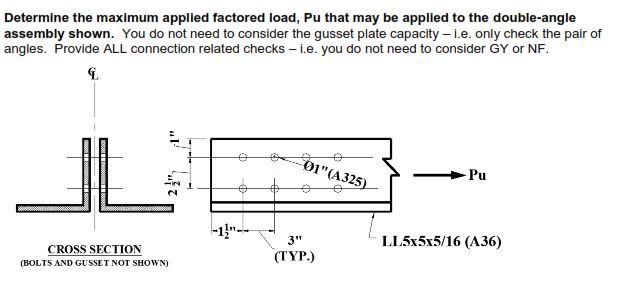

Determine the maximum applied factored load, Pu that may be applied to the double-angle assembly shown. You do not need to consider the gusset plate capacity - i.e. only check the pair of angles. Provide ALL connection related checks - i.e. you do not need to consider GY or NF. & o 01"(A325) Pu -1"- LL5x5x5/16 (A36) CROSS SECTION (BOLTS AND GUSSET NOT SHOWN) 3" (TYP.)
